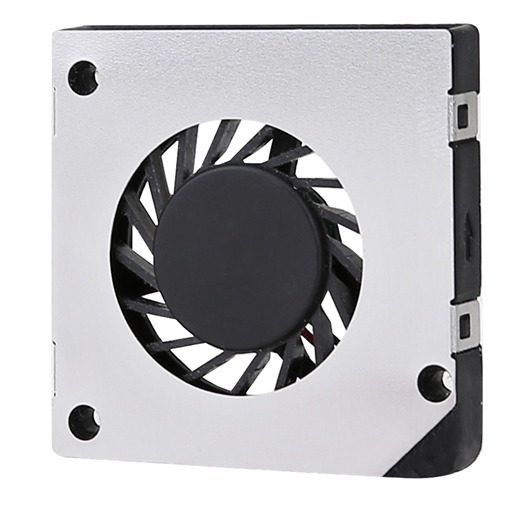

30X30X10mm BLOWER

model:MFB3010





MFB3010



Bearing system: Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 8.5 g















30X 30 X 10 mm






MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maimun Air Flow Maimun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB3010D05-LL 5 1.8 to 6.8 0.1 0.5 5500 0.025 0.9 2.27 0.089 23.4
MFB3010D05-L 0.12 0.6 6000 0.03 1.07 2.86 0.113 25
MFB3010D05-LV 0.13 0.65 6500 0.033 1.16 3.358 0.132 26.5
MFB3010D05-M 0.14 0.7 7000 0.035 1.23 3.91 0.154 28.7
MFB3010D05-MV 0.16 0.8 7500 0.037 1.31 4.49 0.177 30
MFB3010D05-VM 0.18 0.9 8000 0.038 1.36 5.31 0.209 31.7
MFB3010D05-H 0.2 1 8500 0.039 1.39 5.86 0.231 33.2
MFB3010D1-LL 12 7.0 to 13.5 0.042 0.5 5500 0.025 0.9 2.27 0.089 23.4
MFB3010D1-L 0.05 0.6 6000 0.03 1.07 2.86 0.113 25
MFB3010D1-LV 0.054 0.65 6500 0.033 1.16 3.358 0.132 26.5
MFB3010D1-M 0.058 0.7 7000 0.035 1.23 3.91 0.154 28.7
MFB3010D1-MV 0.067 0.8 7500 0.037 1.31 4.49 0.177 30
MFB3010D1-VM 0.075 0.9 8000 0.038 1.36 5.31 0.209 31.7
MFB3010D1-H 0.083 1 8500 0.039 1.39 5.86 0.231 33.2
