MF 12025

型號:MF 12025





MF 12025



尺寸:92 x 92 x 25mm (3.62 x 3.62 x 1.0inch)
馬達:罩極式
外框:鋁壓鑄
扇葉:PBT + 30%玻璃纖維.UL94V-0
引線:1007# 22AWG. UL/CSA
絕緣電阻:
每分鐘於500VDC測試下阻抗值為100M ohm
絕緣強度:於1,500VAC 50/60Hz測試1分鐘
軸承系統:B:雙滾珠軸承. S:含油軸承
工作溫度:滾珠軸承:-20 ~ 80°C 含油軸承:-10 ~ 56°C
工作壽命:滾珠軸承:50,000 hours at 60°C
     含油軸承:20,000 hours at 45°C
淨重:338 grams

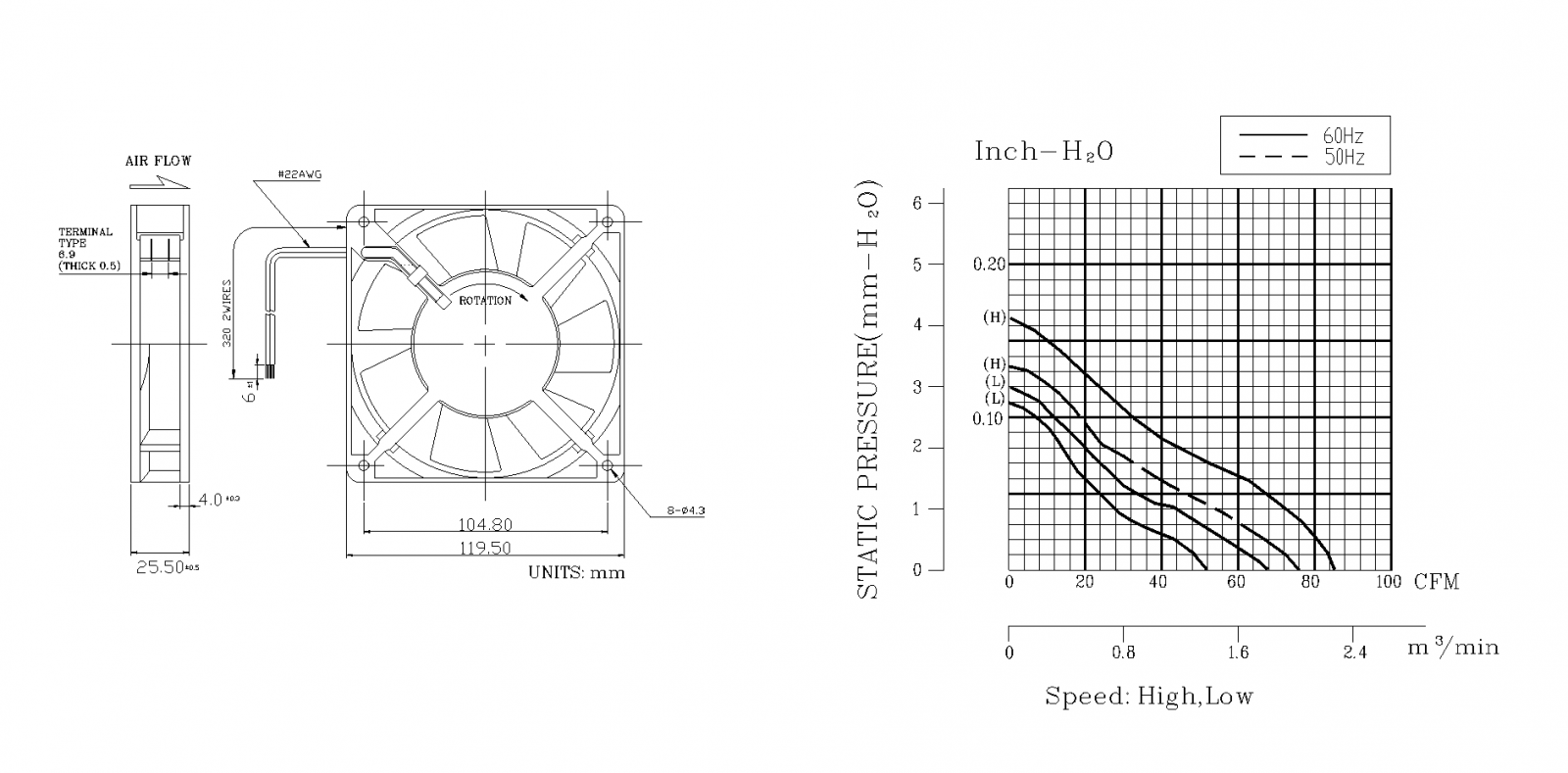

120 X 120 X 25 mm




PART NO.

Bearing

Rated
Voltage

Freg

Current

input
power

Speed

Max.air
Flow

Max.air
Pressure

Noise

Weight

(V)

(Hz)

(A)

(W)

(R.P.M)

CFM

INH2O

dB-A

grams

12025A1HSA(L)
12025A1HBA(L)

Sleeve
Ball

110/120

50/60

0.19/0.18

14/17

2500/2700

70/85

0.13/0.18

40/44

338

12025A2HSA(L)
12025A2HBA(L)

Sleeve
Ball

220/240

50/60

0.09/0.08

14/17

2500/2700

70/85

0.13/0.18

40/44

338

12025A1LSA(L)
12025A1LBA(L)

Sleeve
Ball

110/120

50/60

0.08/0.07

6/8

2000/2200

56/64

0.11/0.13

33/37

338

12025A2LSA(L)
12025A2LBA(L)

Sleeve
Ball

220/240

50/60

0.04/0.03

6/8

2000/2200

56/64

0.11/0.13

33/37

338

12025A1DVHSA(L)
12025A1DVHBA(L)

Sleeve
Ball

110/120

50/60

0.19/0.18

14/17

2500/2700

70/85

0.13/0.18

40/44

338

12025A2DVHSA(L)
12025A2DVHBA(L)

Sleeve
Ball

220/240

50/60

0.09/0.08

14/17

2500/2700

70/85

0.13/0.18

40/44

338
