MFB1804

型號:MFB1804





MFB1804



Bearing system: Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 3 g

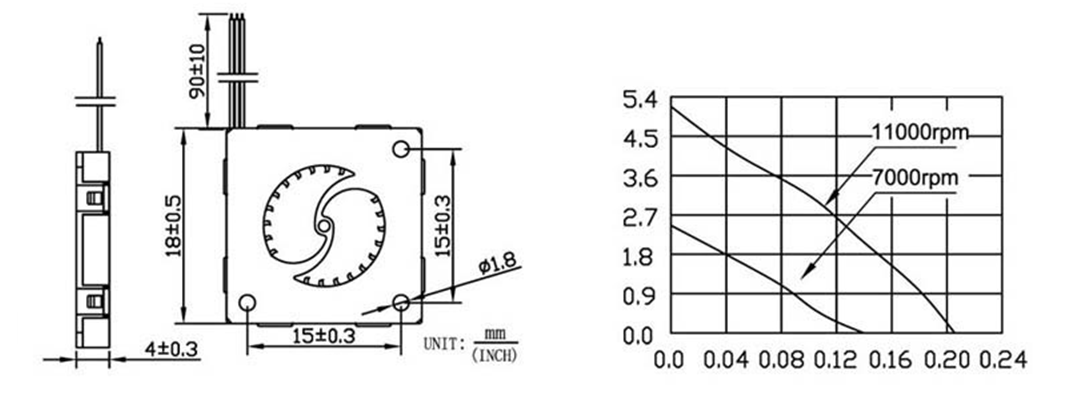

18 X 18 X 04 mm






MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB1804D03-H 3.3 2.8 to 3.6 0.03 0.099 7000 0.004 0.14 2.44 0.096 25
MFB1804D05-HH 5 4.5 to 5.5 0.045 0.225 11000 0.006 0.2 5.16 0.203 <35
