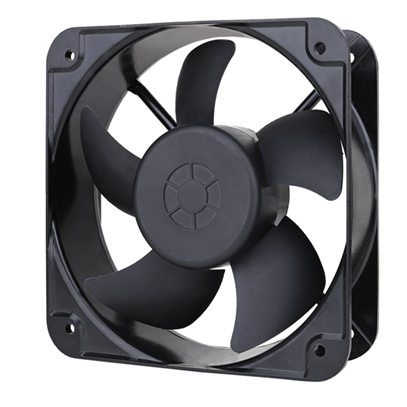

MFE20060

型號:MFE20060





MFE20060



Bearing system: Ball

Frame: Aluminum

Impeller:Thermoplastic PBT UL94V-0

Weight: 2400g















200X 200 X 60 mm






MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VAC VAC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFE20060-M 220V 220-240 0.37 17.86 2000 11.38 400.58 6.65 0.262 24.6
MFE20060-H 0.66 31.68 2500 14.585 513.39 12.15 0.478 60
MFE20060-HH 1.07 51.36 3000 16.673 586.69 17.28 0.68 63.6
MFE20060-VH 1.67 80.16 3500 18.341 645.61 22.02 0.867 68.5
