15X15X04mm

model:MFD1504

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)

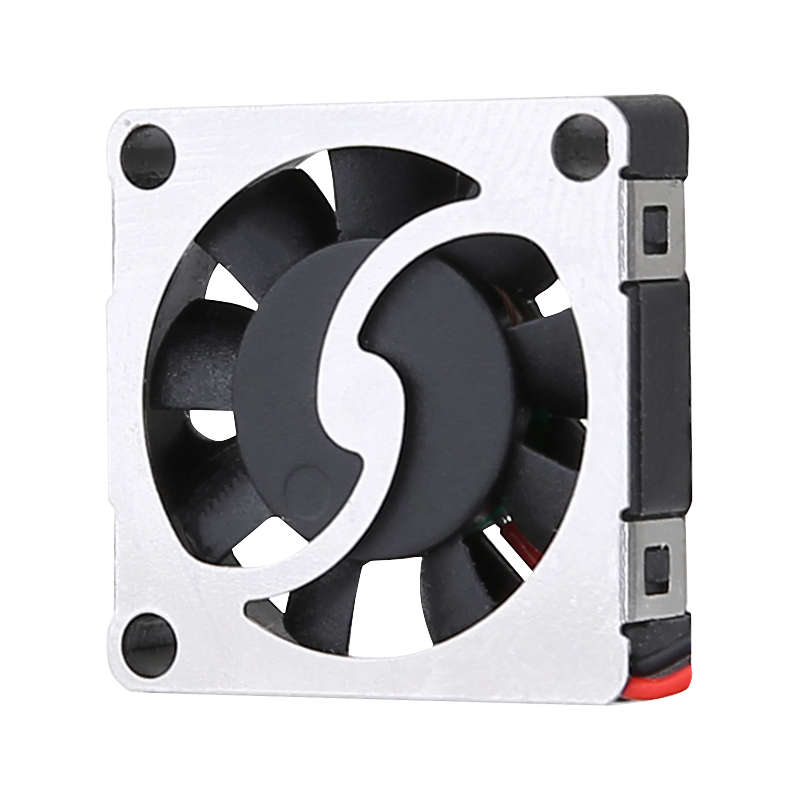

MFD1504

　

Size: 15X15X4mm

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 5 g

　

　

　

　

　

　

　

15 X 15 X 4 mm
　

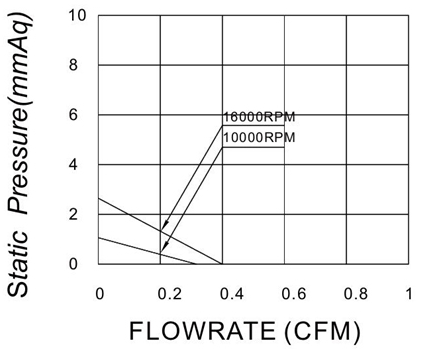

MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD1504D03-M (X) 3.3 2 to 6 0.03 0.1 10000 0.009 0.3 1.5 0.376 <25
MFD1504D05-H (X) 5 2 to 6 0.04 0.2 16000 0.011 0.4 2.8 0.12 <35

　

　
