20X20X06mm

model:MFD2006

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)

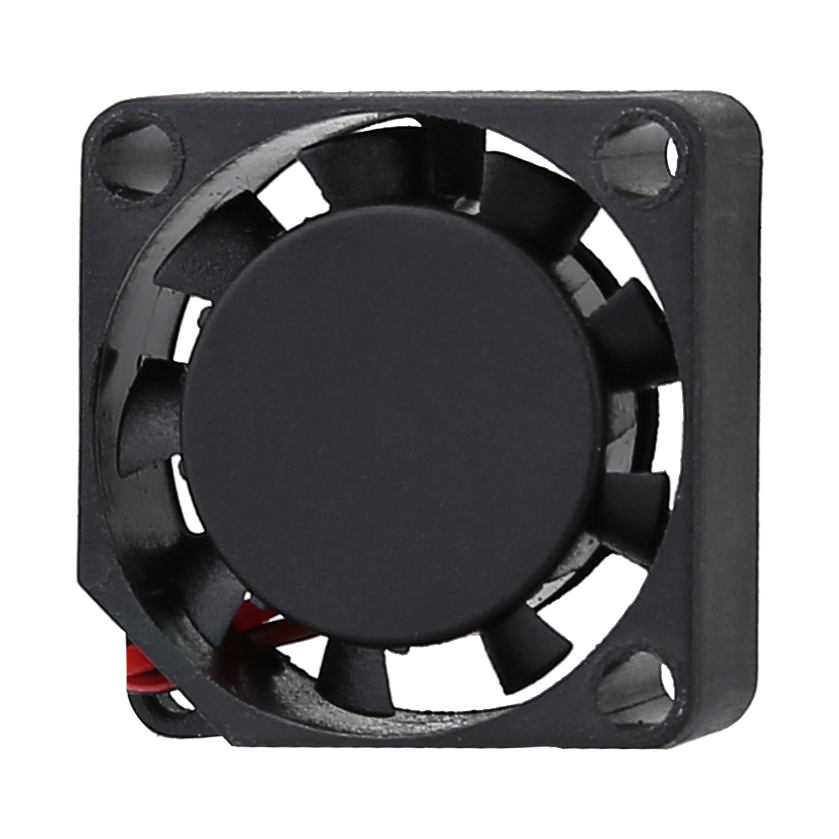

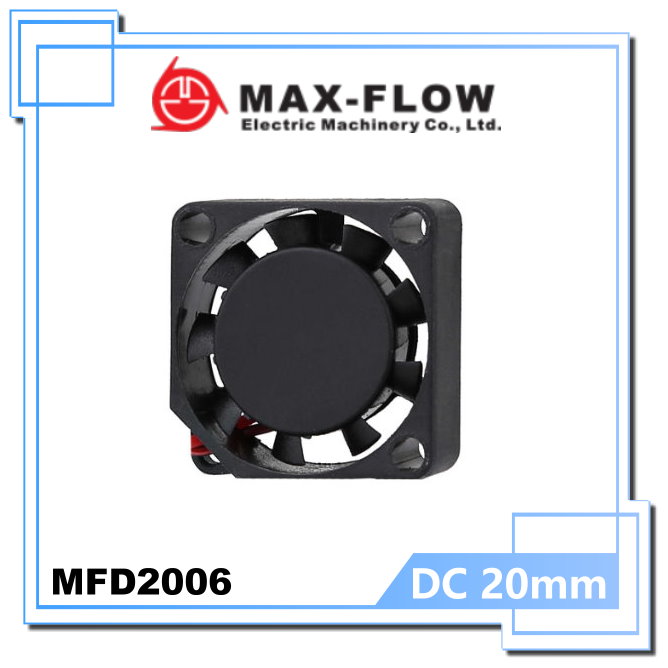

MFD2006

　

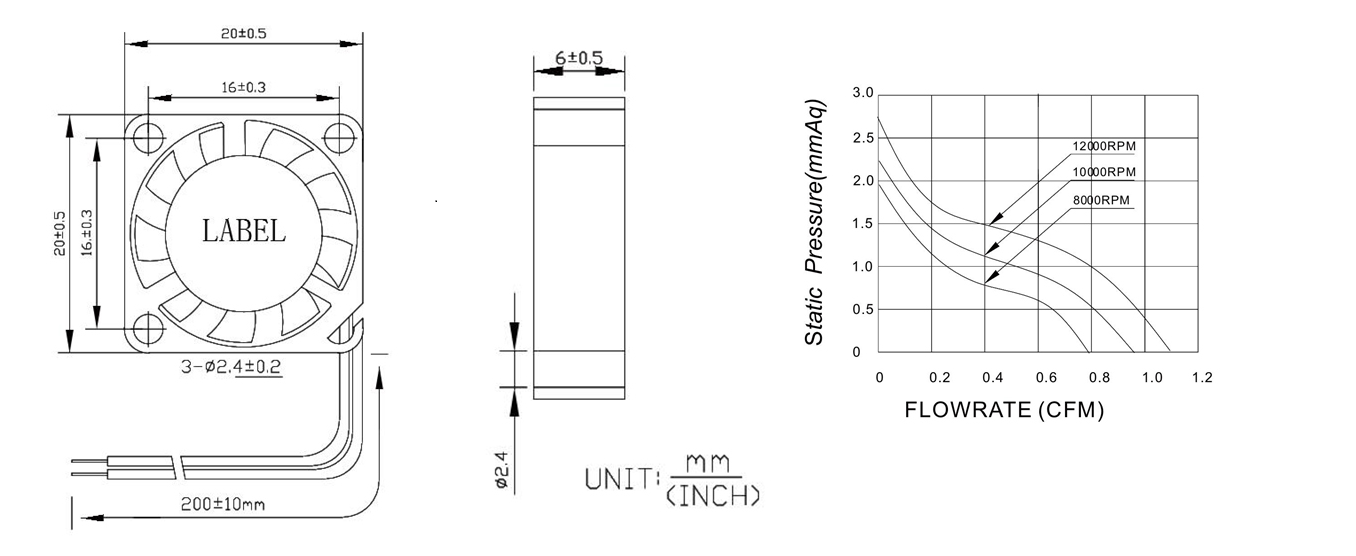

     Size : 20 x 20 x 6 mm

     Bearing system: Sleeve ,HY

     Frame: plastic PBT UL94V-0

     Impeller:plastic PBT UL94V-0

     Operating Temp

     Sleeve: -10 ~ 80°C

     Life Expectancy

     Sleeve: 25,000 hours at 25°C

     Weight: 3.5 g





MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD2006D05-L(X) 5 1.8 ~ 6 0.08 0.4 8000 0.022 0.79 1.95 0.077 21.5
MFD2006D05-M(X) 0.12 0.6 10000 0.027 0.95 2.22 0.087 25.6
MFD2006D05-H(X) 0.16 0.8 12000 0.032 1.12 2.69 0.106 31.2
MFD2006D1-L(X) 12 8.5 ~ 13.5 0.04 0.48 8000 0.022 0.79 1.96 0.077 21.5
MFD2006D1-M(X) 0.06 0.72 10000 0.027 0.95 2.22 0.087 25.6
MFD2006D1-H(X) 0.1 1.2 12000 0.032 1.12 2.69 0.106 31.2



　
