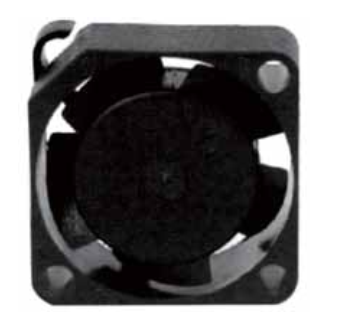

20X20X10mm

model:MFD2010

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD2010

　

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 4 g

　

　

　

　

　

　

　

20 X 20 X 10 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD2010D05-L 5 1.8 to 6 0.06 0.3 10000 0.03 1.05 2.16 0.085 18.8
MFD2010D05-M 0.08 0.4 12000 0.032 1.14 2.65 0.104 21.3
MFD2010D05-H 0.13 0.65 14000 0.038 1.35 4.3 0.169 24.2
MFD2010D1-L 12 8.5 to 13.5 0.03 0.36 10000 0.03 1.05 2.16 0.085 18.8
MFD2010D1-M 0.05 0.6 12000 0.032 1.14 2.65 0.104 21.3
MFD2010D1-H 0.08 0.96 14000 0.038 1.35 4.3 0.169 24.2

　

　
