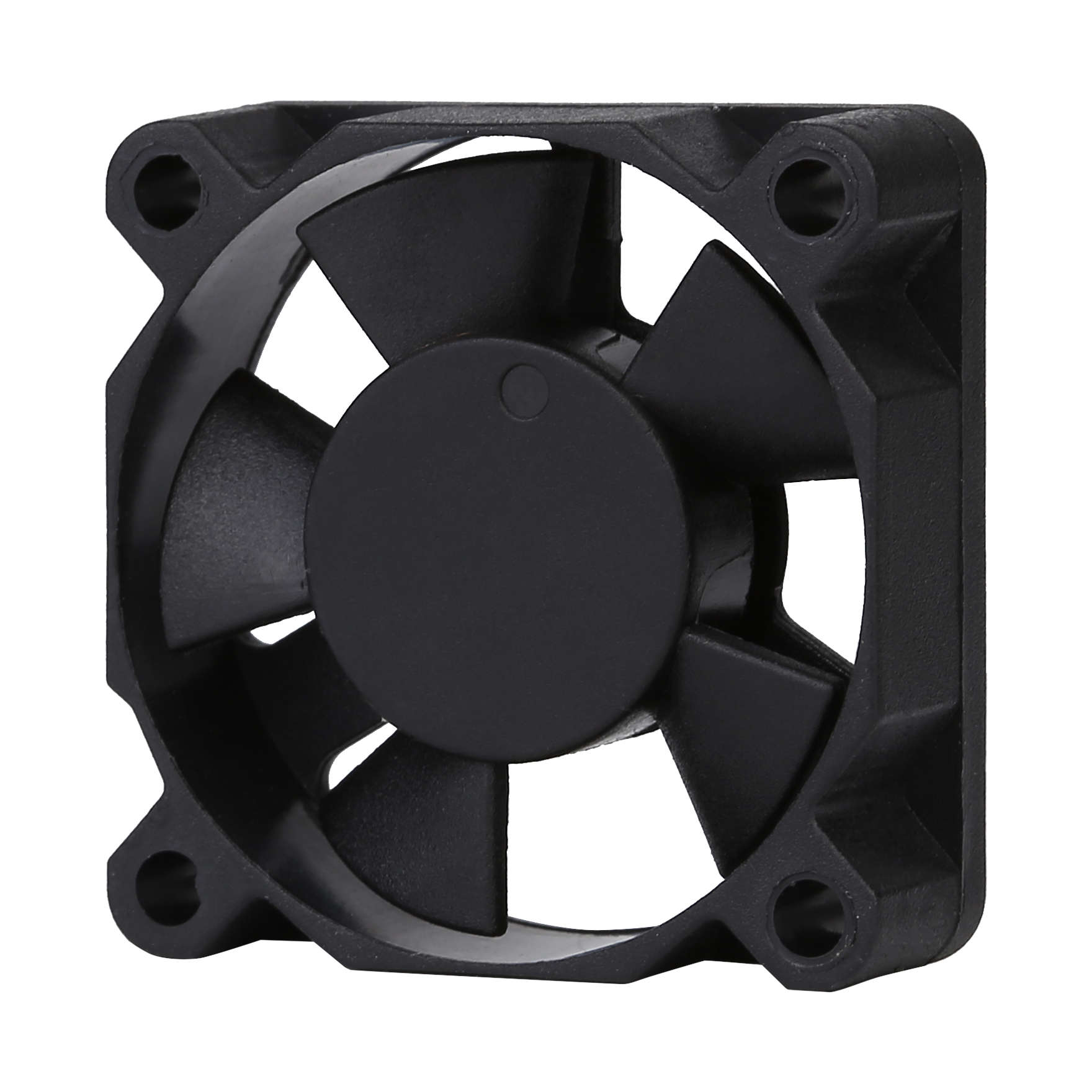

30X30X10mm

model:MFD3010

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD3010

　

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 5 g

　

　

　

　

　

　

　

30 X 30 X 10 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD3010D05-L 5 1.8 to 6 0.14 0.72 5000 0.028 0.98 1.22 0.048 15.5
MFD3010D05-M 0.17 0.84 7000 0.064 2.25 2.50 0.098 22.4
MFD3010D05-H 0.19 0.96 9000 0.084 2.95 4.25 0.167 26.3
MFD3010D05-HH 0.22 1.08 11000 0.102 3.61 6.28 0.247 32.0
MFD3010D05-VH 0.24 1.2 13000 0.120 4.25 8.25 0.325 34.9
MFD3010D1-L 12 8.5 to 13.5 0.06 0.72 5000 0.028 0.98 1.22 0.048 15.5
MFD3010D1-M 0.07 0.84 7000 0.064 2.25 2.50 0.98 22.4
MFD3010D1-H 0.08 0.96 9000 0.084 2.95 4.25 0.167 26.3
MFD3010D1-HH 0.09 1.08 11000 0.102 3.61 6.28 0.247 32.0
MFD3010D1-VH 0.1 1.2 13000 0.120 4.25 8.25 0.325 34.9

　

　
