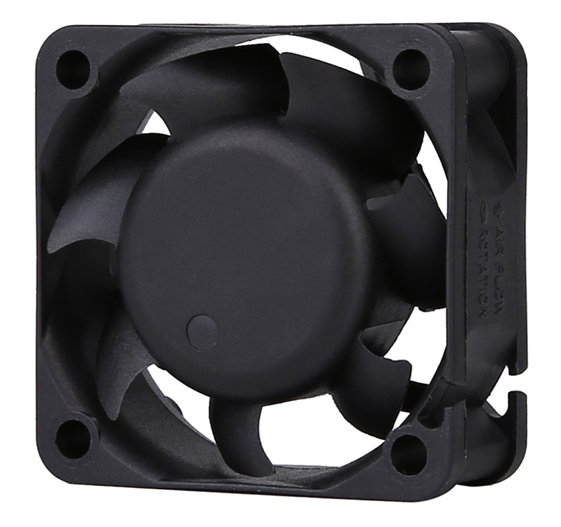

40X40X20mm

model:MFD4020A

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD4020A

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 26 g

　

　

　

　

　

　

　

40 X 40 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD4020AD05-L 5 1.8 ~ 6 0.15 0.72 5000 0.147 5.19 2.62 0.103 20.9
MFD4020AD05-LM 0.17 0.84 6000 0.182 6.41 3.87 0.152 26.7
MFD4020AD05-M 0.19 0.96 6500 0.195 6.87 4.60 0.181 29.1
MFD4020AD05-H 0.22 1.08 7500 0.224 7.90 5.78 0.228 32.7
MFD4020AD05-HH 0.24 1.2 8500 0.248 8.77 7.52 0.296 37.2
MFD4020AD1-L 12 8.5 ~ 13.5 0.06 0.72 5000 0.147 5.19 2.62 0.103 20.9
MFD4020AD1-LM 0.07 0.84 6000 0.182 6.41 3.87 0.152 26.7
MFD4020AD1-M 0.08 0.96 6500 0.195 6.87 4.60 0.181 29.1
MFD4020AD1-H 0.09 1.08 7500 0.224 7.90 5.78 0.228 32.7
MFD4020AD1-HH 0.1 1.2 8500 0.248 8.77 7.52 0.296 37.2
MFD4020AD2-M 24 18 ~ 26.5 0.04 0.96 6500 0.195 6.87 4.60 0.181 29.1
MFD4020AD2-H 0.045 1.08 7500 0.224 7.90 5.78 0.228 32.7
MFD4020AD2-HH 0.050 1.2 8500 0.248 8.77 7.52 0.296 37.2

　

　
