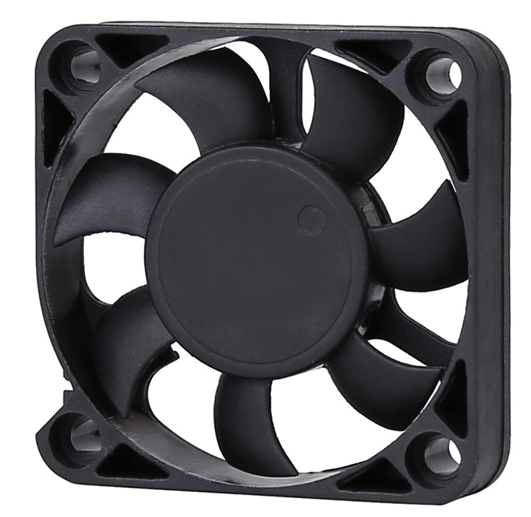

50x50x15mm

model:MFD5015

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD5015

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 27 g

　

　

　

　

　

　

　

50 X 50 X 15 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD5015AD05-H 5 1.8-6 0.12 0.6 3500 0.241 8.52 2.06 0.081 24.1
MFD5015AD05-HH 0.144 0.72 4000 0.277 9.77 2.76 0.109 28.1
MFD5015AD05-VH 0.192 0.96 4500 0.308 10.80 3.37 0.133 31.2
MFD5015AD05-HV 0.24 1.2 5000 0.343 12.10 4.04 0.159 33.9
MFD5015AD1-HX) 12 8.5 to 13.5 0.05 0.6 3500 0.241 8.52 2.06 0.081 24.1
MFD5015AD1-HH 0.06 0.72 4000 0.277 9.77 2.76 0.109 28.1
MFD5015AD1-VH 0.08 0.96 4500 0.308 10.80 3.37 0.133 31.2
MFD5015AD1-HV 0.1 1.2 5000 0.343 12.10 4.04 0.159 33.9
MFD5015AD1-LH 0.14 1.68 5500 0.380 13.40 4.84 0.191 37.7
MFD5015AD1-HL 0.18 2.16 6000 0.416 14.60 5.76 0.228 39.4
MFD5015AD1-MH 0.24 2.88 6500 0.449 15.80 6.68 0.263 41.2
MFD5015AD1-HM 0.3 3.6 7500 0.519 18.30 8.68 0.342 46.1
MFD5015AD2-VH 24 18~26.5 0.04 0.96 4500 0.308 10.80 3.37 0.133 31.2
MFD5015AD2-HV 0.05 1.2 5000 3.430 12.10 4.04 0.159 33.9
MFD5015AD2-LH 0.07 1.68 5500 0.380 13.40 4.84 0.191 37.7
MFD5015AD2-HL 0.09 2.16 6000 0.416 14.60 5.76 0.228 39.4
MFD5015AD2-MH 0.12 2.88 6500 0.449 15.80 6.68 0.263 41.2
MFD5015AD2-HM 0.15 3.6 7500 0.519 18.30 8.68 0.342 46.1

　

　
