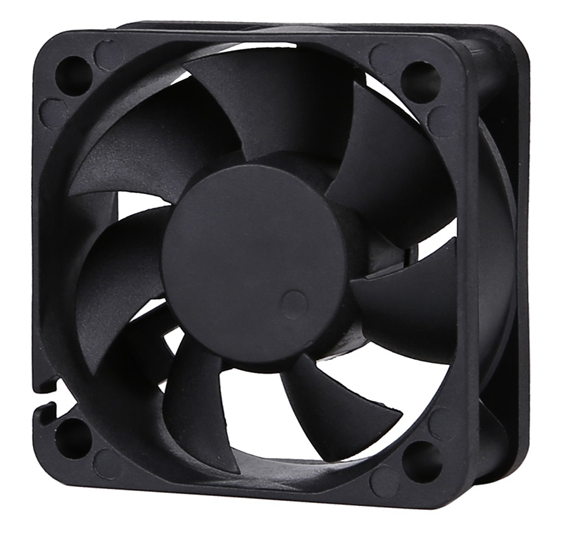

50X50X20mm

model:MFD5020

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD5020

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 33 g

　

　

　

　

　

　

　

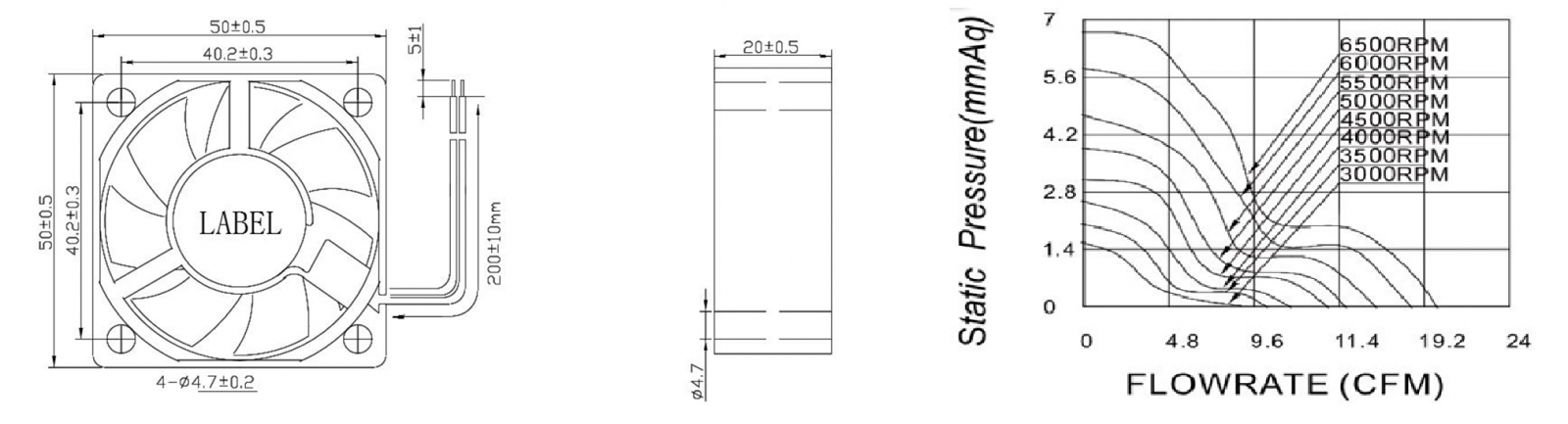

50 X 50 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD5020D1-VL 12 8.5~13.5 0.06 0.72 3000 0.251 8.85 1.53 0.060 22.3
MFD5020D1-LL 0.08 0.96 3500 0.283 10.30 1.99 0.078 24.2
MFD5020D1-L 0.1 1.2 4000 0.338 11.90 2.57 0.101 26.0
MFD5020D1-M 0.14 1.68 4500 0.380 13.40 3.15 0.124 30.2
MFD5020D1-MH 0.18 2.16 5000 0.417 14.70 3.84 0.015 34.5
MFD5020D1-H 0.22 2.64 5500 0.471 16.60 4.69 0.185 36.8
MFD5020D1-LH 0.24 2.88 6000 0.521 18.40 5.81 0.229 40.6
MFD5020D1-HH 0.28 3.36 6500 0.570 20.10 6.71 0.264 41.4
MFD5020D2-VL 24 18~26.5 0.03 0.72 3000 0.251 8.85 1.53 0.060 22.3
MFD5020D2-LL 0.04 0.96 3500 0.283 10.30 1.99 0.078 24.2
MFD5020D2-L 0.05 1.2 4000 0.338 11.90 2.57 0.101 26.0
MFD5020D2-M 0.07 1.68 4500 0.380 13.40 3.15 0.124 30.2
MFD5020D2-MH 0.09 2.16 5000 0.417 14.70 3.84 0.015 34.5
MFD5020D2-H 0.11 2.64 5500 0.471 16.60 4.69 0.185 36.8
MFD5020D2-LH 0.12 2.88 6000 0.521 18.40 5.81 0.229 40.6
MFD5020D2-HH 0.14 3.36 6500 0.570 20.10 6.71 0.264 41.4

　

　
