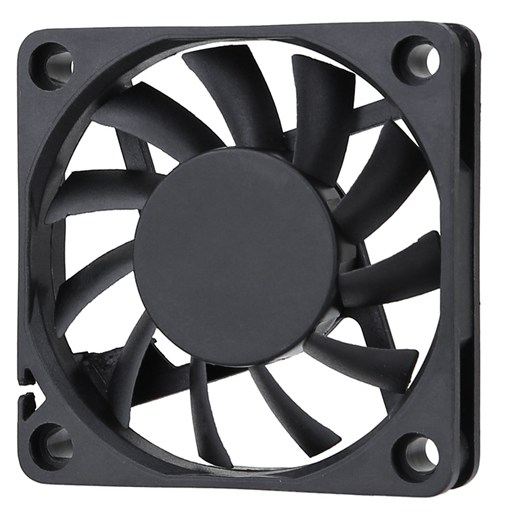

60X60X10mm

model:MFD6010

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6010

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 22 g

　

　

　

　

　

　

　

60 X 60 X 10 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6010D05-L 5 1.8~6 0.072 0.36 3000 0.325 11.40 1.30 0.051 25.3
MFD6010D05-M 0.096 0.48 3500 0.381 13.40 1.67 0.066 29.3
MFD6010D05-H 0.12 0.6 4000 0.461 16.20 2.29 0.090 32.8
MFD6010D05-HH 0.144 0.72 4500 0.501 17.70 2.72 0.107 35.9
MFD6010D05-VH 0.168 0.84 5000 0.550 19.40 3.34 0.131 39.0
MFD6010D1-L 12 8.5~13.5 0.03 0.36 3000 0.325 11.40 1.30 0.051 25.3
MFD6010D1-M 0.04 0.48 3500 0.381 13.60 1.67 0.066 29.3
MFD6010D1-H 0.05 0.6 4000 0.461 16.20 2.29 0.090 32.8
MFD6010D1-HH 0.06 0.72 4500 0.501 17.70 2.72 0.107 35.9
MFD6010D1-VH 0.07 0.84 5000 0.550 19.40 3.34 0.131 39.0

　

　
