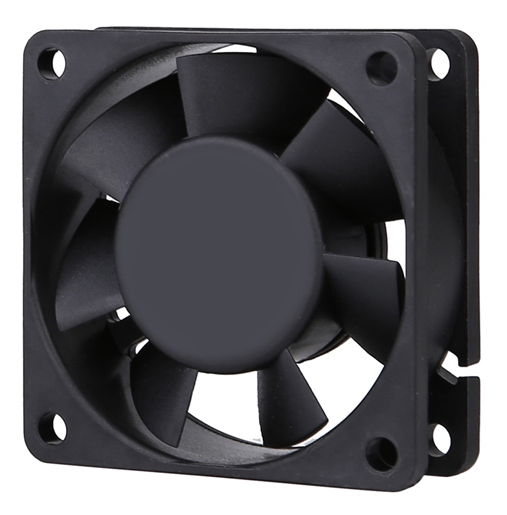

60X60X20mm

model:MFD6020

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6020

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 47.3 g

　

　

　

　

　

　

　

60 X 60 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6020D05-L 12 6.8~13.5 0.06 0.72 3500 0.392 13.80 2.87 0.113 27.2
MFD6020D05-LM 0.08 0.96 4000 0.437 15.40 3.90 0.154 30.1
MFD6020D05-M 0.1 1.2 4500 0.499 17.60 4.86 0.191 33.5
MFD6020D05-H 0.12 1.44 5000 0.557 19.60 5.94 0.234 36.5
MFD6020D1-L 24 18~25.5 0.03 0.72 3500 0.392 13.80 2.87 0.113 27.2
MFD6020D1-LM 0.04 0.96 4000 0.437 15.40 3.90 0.154 30.1
MFD6020D1-M 0.05 1.2 4500 0.499 17.60 4.86 0.191 33.5
MFD6020D1-H 0.06 1.44 5000 0.557 19.60 5.94 0.234 36.5

　

　
