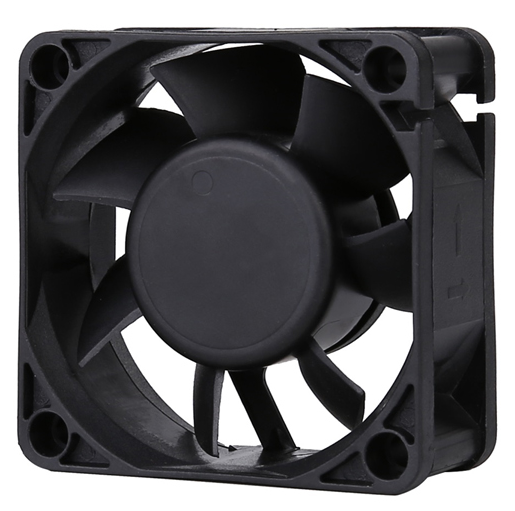

60X60X25mm A

model:MFD6025A

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6025A

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 61 g

　

　

　

　

　

　

　

60 X 60 X 25A mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6025AD1-L 12 8.5~13.5 0.1 1.2 3000 0.446 15.70 2.13 0.084 27.2
MFD6025AD1-LM 0.14 1.68 3500 0.535 18.90 2.76 0.109 30.7
MFD6025AD1-M 0.17 2.04 4000 0.611 21.50 3.64 0.143 34.3
MFD6025AD1-H 0.2 2.4 4500 0.690 24.30 4.63 0.182 37.7
MFD6025AD1-LH 0.23 2.76 5000 0.764 26.90 5.56 0.219 40.2
MFD6025AD2-L 24 18~26.5 0.05 1.2 3000 0.446 15.70 2.13 0.084 27.2
MFD6025AD2-LM 0.07 1.68 3500 0.535 18.90 2.76 0.109 30.7
MFD6025AD2-M 0.085 2.04 4000 0.611 21.50 3.64 0.430 34.3
MFD6025AD2-H 0.1 2.4 4500 0.690 24.30 4.63 0.182 37.7
MFD6025AD2-LH 0.115 2.76 5000 0.764 26.90 5.56 0.219 40.2
MFD6025AD4-L 48 36~54 0.025 1.2 3000 0.446 15.70 2.13 0.084 27.2
MFD6025AD4-LM 0.035 1.68 3500 0.535 18.90 2.75 0.109 30.7
MFD6025AD4M 0.04 2.04 4000 0.611 21.50 3.64 0.143 34.3
MFD6025AD4-H 0.05 2.4 4500 0.690 24.30 4.63 0.182 37.7
MFD6025AD4-LH 0.06 2.76 5000 0.764 26.90 5.56 0.219 40.2

　

　
