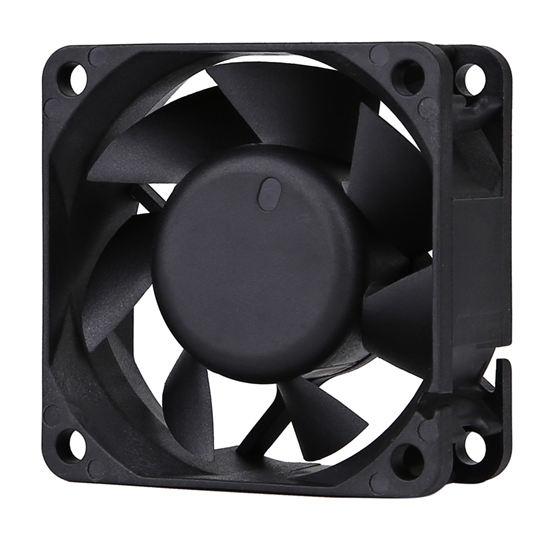

60X60X25mm B

model:MFD6025B

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6025B

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 66 g

　

　

　

　

　

　

　

60 X 60 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6025BD05-L 5 1.8 ~ 6 0.24 1.2 3000 0.443 15.60 2.92 0.115 26.0
MFD6025BD05-M 0.36 1.8 3500 0.523 18.40 3.87 0.152 28.7
MFD6025BD05-H 0.48 2.4 4000 0.602 21.20 5.15 0.203 31.8
MFD6025BD05-HH 0.6 3 4500 0.685 24.10 6.46 0.254 35.5
MFD6025BD05-MV 0.72 3.6 5000 0.758 26.90 7.97 0.313 38.0
MFD6025BD1-L 12 7 ~ 13.5 0.1 1.2 3000 0.443 15.60 2.92 0.115 26.0
MFD6025BD1-M 0.15 1.8 3500 0.523 18.40 3.87 0.152 28.7
MFD6025BD1-H 0.2 2.4 4000 0.602 21.20 5.15 0.203 31.8
MFD6025BD1-HH 0.25 3 4500 0.685 24.10 6.46 0.254 35.5
MFD6025BD1MV- 0.3 3.6 5000 0.758 26.90 7.94 0.313 38.0
MFD6025BD1-VM 0.35 4.2 5500 0.827 29.20 9.23 0.364 39.9
MFD6025BD1-HV 0.38 4.56 6000 0.902 31.80 11.15 0.439 42.2
MFD6025BD1-VH 0.4 4.8 6500 0.982 34.60 13.09 0.515 44.8
MFD6025BD1-HHV 0.45 5.4 7000 1.048 3.70 14.82 0.583 46.0
MFD6025BD1-VHH 0.5 6 7500 1.119 39.50 16.83 0.663 49.5
MFD6025BD2-L 24 18~26.5 0.05 1.2 3000 0.443 15.6 2.92 0.115 26.0
MFD6025BD2-M 0.075 1.8 3500 0.523 18.4 3.87 0.152 28.7
MFD6025BD2-H 0.1 2.4 4000 0.602 21.2 5.15 0.203 31.8
MFD6025BD2-HH 0.125 3 4500 0.685 24.1 6.46 0.254 35.5
MFD6025BD2-MV 0.15 3.6 5000 0.758 26.9 7.94 0.313 38.0
MFD6025BD2-VM 0.175 4.2 5500 0.827 29.2 9.23 0.364 39.9
MFD6025BD2-HV 0.19 4.56 6000 0.902 31.8 11.15 0.439 42.2
MFD6025BD2-VH 0.2 4.8 6500 0.982 34.6 13.09 0.515 44.8
MFD6025BD2-HHV 0.225 5.4 7000 1.048 3.7 14.82 0.583 46.0
MFD6025BD2-VHH 0.25 6 7500 1.119 39.5 16.83 0.663 49.5
MFD6025BD4-H 48 7 ~ 13.5 0.05 2.4 4000 0.602 21.20 5.15 0.203 31.8
MFD6025BD4-HH 0.063 3 4500 0.685 24.10 6.46 0.254 35.5
MFD6025BD4MV- 0.075 3.6 5000 0.758 26.90 7.94 0.313 38.0
MFD6025BD4-VM 0.088 4.2 5500 0.827 29.20 9.23 0.364 39.9
MFD6025BD4-HV 0.095 4.56 6000 0.902 31.80 11.15 0.439 42.2
MFD6025BD4-VH 0.1 4.8 6500 0.982 34.60 13.09 0.515 44.8
MFD6025BD4-HHV 0.113 5.4 7000 1.048 3.70 14.82 0.583 46.0
MFD6025BD4-VHH 0.125 6 7500 1.119 39.50 16.83 0.663 49.5

　

　
