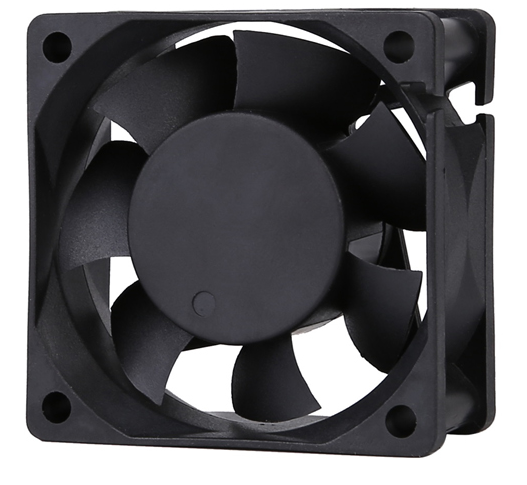

60X60X25mm C

model:MFD6025C

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6025C

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 61 g

　

　

　

　

　

　

　

60 X 60 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD6025CD1-L 12 7~13.5 0.1 1.2 3000 0.349 12.3 2.12 0.083 24.2
MFD6025CD1-M 0.15 1.8 3500 0.401 14.1 2.84 0.112 27.4
MFD6025CD1-H 0.2 2.4 4000 0.464 16.3 3.69 0.145 29.8
MFD6025CD1-HH 0.25 3 4500 0.529 18.6 4.61 0.181 34.3
MFD6025CD1-MV 0.3 3.6 5000 0.592 20.9 5.69 0.224 35.8
MFD6025CD1-VM 0.35 4.2 5500 0.64 22.5 6.68 0.263 38.0
MFD6025CD1-HV 0.38 4.56 6000 0.707 24.9 7.85 0.309 42.6
MFD6025CD2-L 24 7 ~ 13.5 0.05 1.2 3000 0.349 12.30 2.12 0.083 24.2
MFD6025CD2-M 0.075 1.8 3500 0.401 14.10 2.84 0.112 27.4
MFD6025CD2-H 0.1 2.4 4000 0.464 16.30 3.69 0.145 29.8
MFD6025CD2-HH 0.125 3 4500 0.529 18.60 4.61 0.181 34.3
MFD6025CD2MV- 0.15 3.6 5000 0.592 20.90 5.69 0.224 35.8
MFD6025CD2-VM 0.175 4.2 5500 0.640 22.50 6.68 0.263 38.0
MFD6025CD2-HV 0.19 4.56 6000 0.707 24.90 7.85 0.309 42.6

　

　
