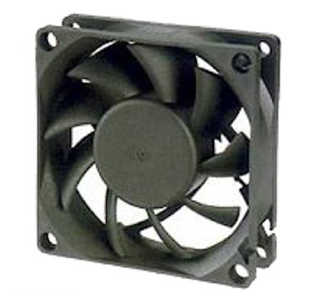

70X70X20mm

model:MFD7020

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD7020

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 59.3 g

　

　

　

　

　

　

　

70 X 70 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD7020D1-L 12 6.0 ~ 13.5 0.12 1.44 2500 0.489 17.29 2.068 0.082 29.2
MFD7020D1-M 0.2 2.4 3000 0.619 21.89 3.101 0.122 31
MFD7020D1-H 0.24 2.88 3500 0.723 25.54 4.135 0.163 35.2
MFD7020D1-HH 0.25 3 4000 0.888 31.38 5.814 0.229 37.1
MFD7020D1-VH 0.35 4.2 4500 1.004 35.48 7.494 0.551 39.4
MFD7020D2-L 24 18 ~ 26.5 0.08 1.92 2500 0.489 17.29 2.068 0.082 29.2
MFD7020D2-M 0.11 2.64 3000 0.619 21.89 3.101 0.122 31
MFD7020D2-H 0.13 3.12 3500 0.723 25.54 4.135 0.163 35.2
MFD7020D2-HH 0.17 4.08 4000 0.888 31.38 5.814 0.229 37.1
MFD7020D2-VH 0.22 5.28 4500 1.004 35.48 7.494 0.551 39.4

　

　
