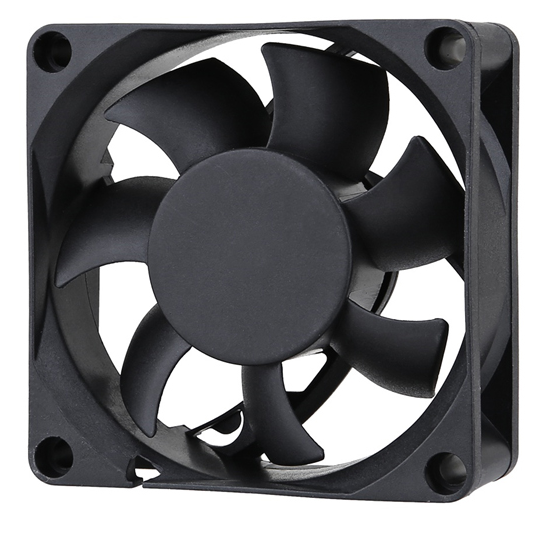

70X70X25mm

model:MFD7025

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD7025

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 69 g

　

　

　

　

　

　

　

70 X 70 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD7025D1-L 12 7 ~ 13.5 0.14 1.68 3000 0.76 26.8 2.930 0.115 32.5
MFD7025D1-M 0.176 2.16 3500 0.886 31.2 3.840 0.151 36.0
MFD7025D1-H 0.22 2.64 4000 1.022 36.0 5.090 0.200 40.9
MFD7025D1-HH 0.26 3.12 4500 1.147 40.5 6.290 0.248 43.0
MFD7025D1-VH 0.32 3.84 5000 1.274 44.9 7.800 0.307 47.3
MFD7025D2-L 24 18 ~ 26.5 0.07 1.68 3000 0.760 26.8 2.930 0.115 32.5
MFD7025D2-M 0.09 2.16 3500 0.886 31.2 3.840 0.151 36.0
MFD7025D2-H 0.11 2.64 4000 1.022 36.0 5.000 0.200 40.9
MFD7025D2-HH 0.13 3.12 4500 1.147 40.5 6.290 0.248 43.0
MFD7025D2-VH- 0.16 3.84 5000 1.274 44.9 7.800 0.307 47.3
MFD7025D4-M 48 36 ~ 54 0.045 2.16 3500 0.886 31.2 3.840 0.151 36.0
MFD7025D4H- 0.055 2.64 4000 1.022 26.0 5.090 0.200 40.9
MFD7025D4-HH 0.065 3.12 4500 1.147 40.5 6.290 0.248 43.0
MFD7025D4-VH 0.08 3.84 5000 1.274 44.9 7.800 0.307 47.3

　

　
