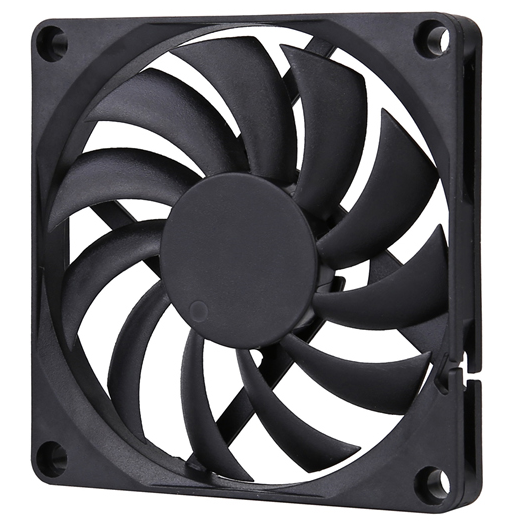

80X80X10mm

model:MFD8010

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD8010

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 40 g

　

　

　

　

　

　

　

80 X 80 X 10 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8010D05-VL 5 3.6 to 6.8 0.144 0.72 2000 0.395 13.9 0.89 0.035 22.9
MFD8010D1-VL 12 6.0 to 13.5 0.06 0.72 2000 0.395 13.9 0.89 0.035 22.9
MFD8010D1-L 0.1 1.2 2500 0.506 17.8 1.2 0.047 26.5
MFD8010D1-M 0.16 1.92 3000 0.619 21.8 1.71 0.067 30.7
MFD8010D1-H 0.22 2.64 3500 0.725 25.6 2.44 0.096 34.9
MFD8010D2-VL 24 18 to 26.5 0.03 0.72 2000 0.395 13.9 0.89 0.035 22.9
MFD8010D2-L 0.05 1.2 2500 0.506 17.8 1.2 0.047 26.5
MFD8010D2-M 0.08 1.92 3000 0.619 21.8 1.71 0.067 30.7
MFD8010D2-H 0.11 2.64 3500 0.725 25.6 2.44 0.096 34.9

　

　
