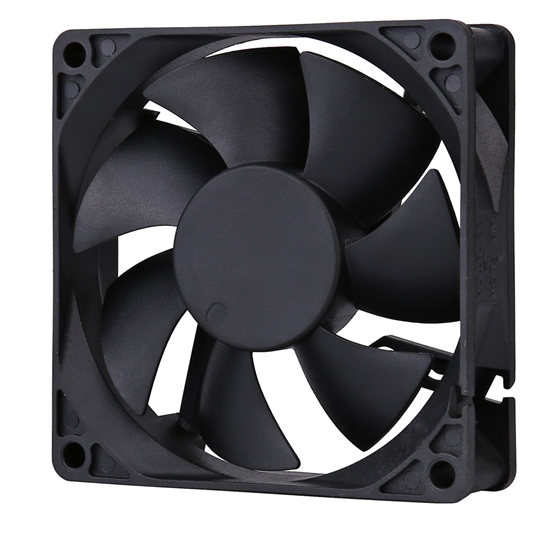

80X80X20mm

model:MFD8020

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD8020

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 60 g

　

　

　

　

　

　

　

80 X 80 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8020D1-L 12 7 ~ 13.5 0.16 1.92 3000 0.028 30.9 2.82 0.048 35.7
MFD8020D1-M 0.22 2.64 3500 0.064 35.7 3.6 0.098 3.8.5
MFD8020D1-H 0.26 3.12 4000 0.084 40.1 4.41 0.167 41.6
MFD8020D1-HH 0.34 4.08 4500 0.102 45.1 5.51 0.247 45.3
MFD8020D2-L 24 18 ~ 26.5 0.08 1.92 3000 0.028 30.90 2.82 0.048 35.7
MFD8020D2-M 0.11 2.64 3500 0.064 35.70 3.60 0.098 38.5
MFD8020D2-H 0.13 3.12 4000 0.084 40.10 4.41 0.167 41.6
MFD8020D2HH- 0.17 4.08 4500 0.102 45.10 5.51 0.247 45.3
MFD8020D4-L 48 36 ~ 54 0.04 1.92 3000 0.028 30.9 2.82 0.048 35.7
MFD8020D4-M 0.055 2.64 3500 0.064 35.7 3.6 0.098 3.8.5
MFD8020D4H- 0.065 3.12 4000 0.084 40.1 4.41 0.167 41.6
MFD8020D4-HH 0.08 4.08 4500 0.102 45.1 5.51 0.247 45.3

　

　
