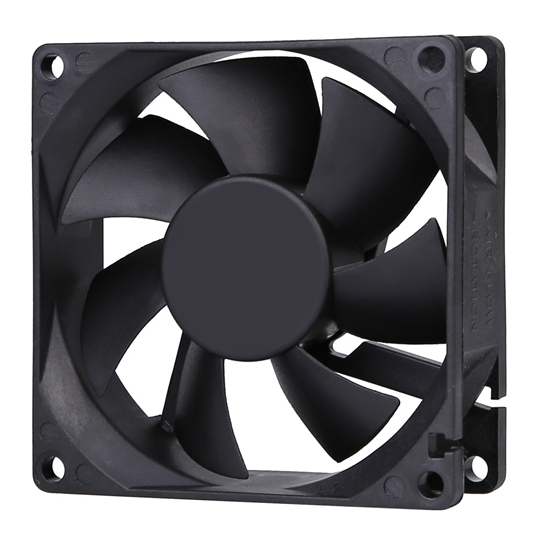

80X80X25mm B

model:MFD8025B

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD8025B

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 85 g

　

　

　

　

　

　

　

80 X 80 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8025BD1-LL 12 7 ~ 13.5 0.08 0.96 2000 0.69 24.4 2.00 0.08 25.8
MFD8025BD1-L 0.12 1.44 2500 0.89 31.4 2.80 0.11 29.1
MFD8025BD1-M 0.15 1.80 3000 1.07 37.9 4.00 0.16 34.2
MFD8025BD1-H 0.25 3.00 3500 1.25 44.3 5.30 0.21 36.9
MFD8025BD1-HH 0.3 3.60 4000 1.44 50.8 7.00 0.28 41.8
MFD8025BD1-VH 0.5 6.00 4500 1.63 57.6 8.50 0.33 45.4
MFD8025BD1-HV 0.63 7.56 5000 1.71 60.5 8.90 0.35 46.3
MFD8025BD2-M 24 18 ~ 26.5 0.08 1.92 3000 1.070 37.90 4.00 0.16 34.2
MFD8025BD2-HH 0.16 3.84 4000 1.440 50.80 7.00 0.28 41.8
MFD8025BD2-HV 0.32 7.68 5000 1.710 60.50 8.90 0.35 46.3
MFD8025BD4-M 48 36 ~ 54 0.04 1.92 3000 1.07 37.9 4.00 0.16 34.2
MFD8025BD4-HH 0.08 3.84 4000 1.44 50.8 7.00 0.28 41.8
MFD8025BD4HV- 0.17 8.16 5000 1.71 60.5 8.90 0.35 46.3

　

　
