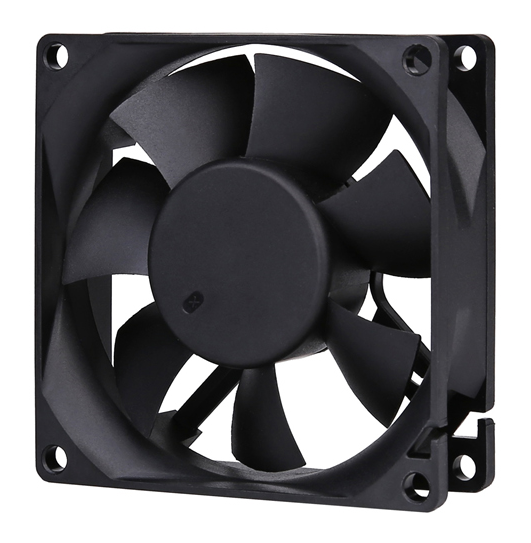

80X80X25mm C

model:MFD8025C





MFD8025C



Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 85 g















80 X 80 X 25 mm






MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8025CD1-LL 12 7 ~ 13.5 0.08 0.96 2400 0.77 27.3 2.50 0.10 24.9
MFD8025CD1-L 0.12 1.44 2700 0.84 29.8 3.00 0.12 29.6
MFD8025CD1-M 0.15 1.80 3250 0.94 33.3 3.70 0.14 35.1
MFD8025CD1-H 0.25 3.00 3000 1.02 36.0 4.10 0.16 40.3
MFD8025CD1-HH 0.3 3.60 3600 1.14 40.3 5.00 0.20 42.4
MFD8025CD1-VH 0.5 6.00 4000 1.26 44.4 6.10 0.24 45.4
MFD8025CD2-M 24 18 ~ 26.5 0.08 1.92 3000 0.94 33.3 3.70 0.14 35.1
MFD8025CD2-HH 0.16 3.84 3600 1.14 40.3 5.00 0.20 42.4
MFD8025CD2-VH 0.32 7.68 4000 1.26 44.4 6.10 0.24 45.4
MFD8025CD4-M 48 36 ~ 54 0.04 1.92 3000 0.94 33.3 3.70 0.14 35.1
MFD8025CD4-HH 0.08 3.84 3600 1.14 40.3 5.00 0.20 42.4
MFD8025CD4VH 0.14 6.75 4000 1.26 44.4 6.10 0.24 45.4
