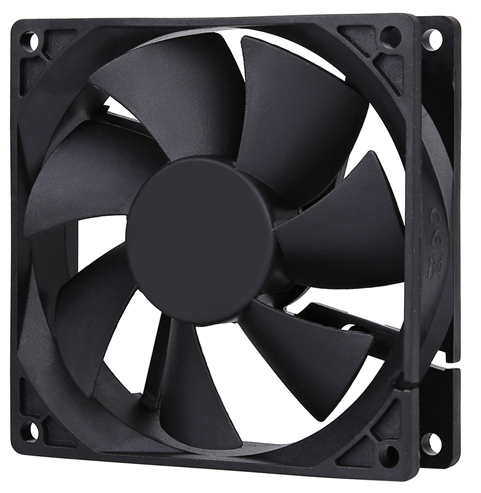

92X92X25mm A

model:MFD9225A

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD9225A

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 103g

　

　

　

　

　

　

　

92 X 92 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD9225AD1-L 12 7 ~13.5 0.12 1.44 2000 0.905 31.90 2.01 0.079 27.5
MFD9225AD1-M 0.16 1.92 2500 1.086 38.30 2.92 0.115 33.7
MFD9225AD1-H 0.2 2.4 3000 1.389 49.00 4.11 0.162 39.1
MFD9225AD1-HH 0.24 2.88 3500 1.554 54.80 4.99 0.196 42.4
MFD9225AD1-HV 0.32 3.84 4000 1.875 66.20 6.78 0.267 46.4
MFD9225AD1-VH 0.44 5.28 4500 2.094 73.90 8.32 0.328 50.1
MFD9225AD2-L 24 18 ~ 26.5 0.06 1.44 2000 0.905 31.90 2.01 0.079 27.5
MFD9225AD2-M 0.08 1.92 2500 1.086 38.30 2.92 0.115 33.7
MFD9225AD2-H 0.1 2.4 3000 1.389 49.00 4.11 0.162 39.1
MFD9225AD2-HH 0.12 2.88 3500 1.554 54.80 4.99 0.196 42.4
MFD9225AD2-HV 0.16 3.84 4000 1.875 66.20 6.78 0.267 46.4
MFD9225AD2-VH 0.22 5.28 4500 2.094 73.90 8.32 0.328 50.1
MFD9225AD4-L 48 36 ~ 54 0.03 1.44 2000 0.905 31.90 2.01 0.079 27.5
MFD9225AD4-M 0.04 1.92 2500 1.086 38.30 2.92 0.115 33.7
MFD9225AD4-H 0.05 2.4 3000 1.389 49.00 4.11 0.162 39.1
MFD9225AD4-HH 0.06 2.88 3500 1.554 54.80 4.99 0.196 42.4
MFD9225AD4-HV 0.08 3.84 4000 1.875 66.20 6.78 0.267 46.4
MFD9225AD4-VH 0.11 5.28 4500 2.094 73.90 8.32 0.328 50.1

　

　
