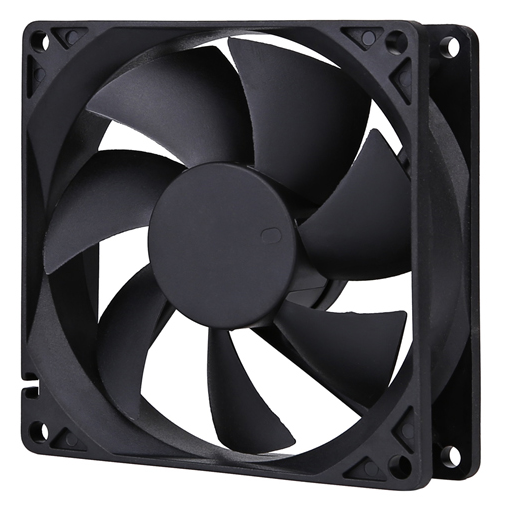

92X92X25mm C

model:MFD9225C

add to inquiry
category： DC FAN 、DC FAN ( 80/90mm )





MFD9225C

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight:87g

　

　

　

　

　

　

　

92 X 92 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD9225CD1-L 12 7 ~13.5 0.12 1.44 2000 0.986 34.80 1.86 0.073 33.3
MFD9225CD1-M 0.16 1.92 2500 1.213 42.80 2.74 0.108 35.1
MFD9225CD1-H 0.2 2.4 3500 1.410 49.70 3.67 0.144 39.3
MFD9225CD1-HH 0.24 2.88 4000 1.667 59.20 5.21 0.205 44.4
MFD9225CD1-HV 0.32 3.84 4500 1.915 67.60 5.97 0.235 47.4
MFD9225CD1-VH 0.44 5.28 5000 2.094 73.90 8.32 0.328 50.1
MFD9225CD2-L 24 18 ~ 26.5 0.06 1.44 2000 0.986 34.80 1.86 0.073 33.3
MFD9225CD2-M 0.08 1.92 2500 1.213 42.80 2.74 0.108 35.1
MFD9225CD2-H 0.1 2.4 3500 1.410 49.70 3.67 0.144 39.3
MFD9225CD2-HH 0.12 2.88 4000 1.667 59.20 5.21 0.205 44.4
MFD9225CD2-HV 0.16 3.84 4500 1.915 67.60 5.97 0.235 47.4
MFD9225CD2-VH 0.22 5.28 5000 2.094 73.90 8.32 0.328 50.1
MFD9225CD4-L 48 36 ~ 54 0.03 1.44 2000 0.986 34.80 1.86 0.073 33.3
MFD9225CD4-M 0.04 1.92 2500 1.213 42.80 2.74 0.108 35.1
MFD9225CD4-H 0.05 2.4 3500 1.410 49.70 3.67 0.144 39.3
MFD9225CD4-HH 0.06 2.88 4000 1.667 59.20 5.21 0.205 44.4
MFD9225CD4-HV 0.08 3.84 4500 1.915 67.60 5.97 0.235 47.4
MFD9225CD4-VH 0.11 5.28 5000 2.094 73.90 8.32 0.328 50.1

　

　
