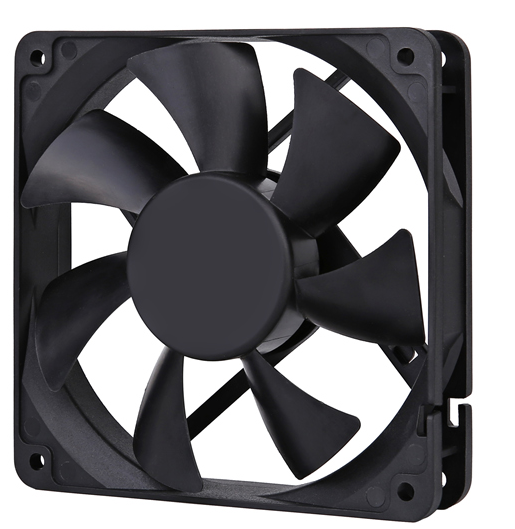

120X120X25mm A

model:MFD12025A

add to inquiry
category： DC FAN 、DC FAN (120/172mm)





MFD12025A

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight:152g

　

　

　

　

　

　

　

120 X 120 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD12025AD1-L 12 6.0 to 13.5 0.18 2.16 1500 1.82 64.2 1.76 0.069 30.5
MFD12025AD1-M 0.25 3 2000 2.171 76.6 2.43 0.096 36.5
MFD12025AD1-H 0.31 3.72 2500 2.617 92.4 3.98 0.157 42.1
MFD12025AD1-HH 0.45 5.4 3000 3.041 107 5.04 0.198 47.4
MFD12025AD2-L 24 18 to 26.5 0.09 2.16 1500 1.82 64.2 1.76 0.069 30.5
MFD12025AD2-M 0.125 3 2000 2.171 76.6 2.43 0.096 36.5
MFD12025AD2-H 0.155 3.72 2500 2.617 92.4 3.98 0.157 42.1
MFD12025AD2-HH 0.225 5.4 3000 3.041 107 5.04 0.198 47.4
MFD12025AD4-L 48 36 to 55 0.045 2.16 1500 1.82 64.2 1.76 0.069 30.5
MFD12025AD4-M 0.063 3 2000 2.171 76.6 2.43 0.096 36.5
MFD12025AD4-H 0.078 3.72 2500 2.617 92.4 3.98 0.157 42.1
MFD12025AD4-HH 0.112 5.4 3000 3.041 107 5.04 0.198 47.4

　

　
