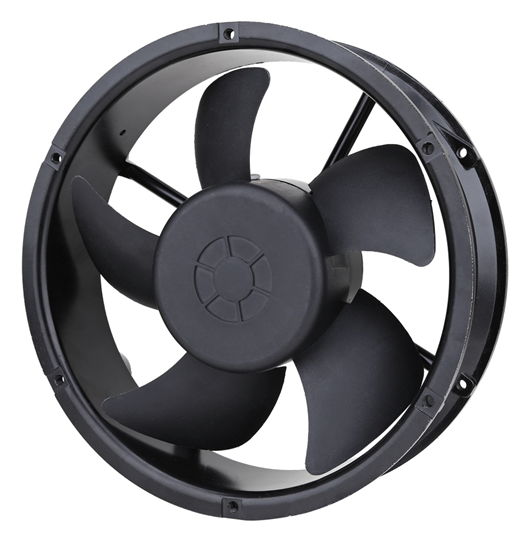

Ø 220X60mm

model:MFD22060

add to inquiry
category： DC FAN 、DC FAN (180/250mm)





MFD22060

　

Bearing system: BALL ,Sleeve

Frame: Aluminum

Impeller:Thermoplastic PBT UL94V-0

Weight: 1540 g

　

　

　

　

　

　

　

Ø 220 X 60 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD22060D1-M 12 7~ 13.5 1.65 19.8 2000 11.38 400.58 6.65 0.262 54.6
MFD22060D1-H 2.92 35.04 2500 14.58 513.39 12.15 0.478 60
MFD22060D1-HH 4.73 56.76 3000 16.673 586.69 17.28 0.68 63.6
MFD22060D1-VH 74 88.8 3500 18.341 645.61 22.02 0.867 68.5
MFD22060D2-M 24 18 ~26.5 0.78 18.81 2000 11.38 400.58 6.65 0.262 54.6
MFD22060D2-H 1.39 33.29 2500 14.58 513.39 12.15 0.478 60
MFD22060D2-HH 2.25 53.92 3000 16.673 586.69 17.28 0.68 63.6
MFD22060D2-VH 3.52 84.36 3500 18.341 645.61 22.02 0.867 68.5
MFD22060D4-M 48 36 ~54 0.37 17.87 2000 11.38 400.58 6.65 0.262 54.6
MFD22060D4-H 0.66 31.62 2500 14.58 513.39 12.15 0.478 60
MFD22060D4-HH 1.07 51.23 3000 16.673 586.69 17.28 0.68 63.6
MFD22060D4-VH 1.67 80.14 3500 18.341 645.61 22.02 0.867 68.5

　
