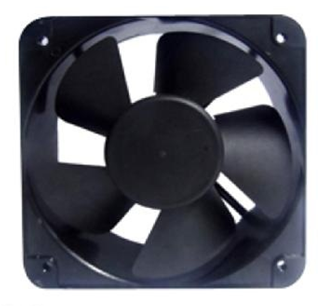

200X200x60mm

model:MFD20060

add to inquiry
category： DC FAN 、DC FAN (180/250mm)





MFD20060

　

Bearing system: BALL ,Sleeve

Frame: Aluminum

Impeller:Thermoplastic PBT UL94V-0

Weight: 2400 g

　

　

　

　

　

　

　

200 X200 X 60 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD20060D1-L 12 6.0 ~ 13.5 0.8 9.54 1500 874 308.2 5.54 0.22 52
MFD20060D1-M 1.65 19.8 2000 11.66 410.93 7.39 0.29 56.3
MFD20060D1-H 2.92 35.04 2500 14.57 513.66 9.24 0.36 60.2
MFD20060D1-HH 4.73 56.76 3000 17.49 616.4 11.08 0.44 65.8
MFD20060D1-VH 7.4 88.8 3500 20.4 719.14 12.93 0.51 70.5
MFD20060D2-L 24 18 ~ 26.5 0.38 9.06 1500 874 308.2 5.54 0.22 52
MFD20060D2-M 0.78 18.81 2000 11.66 410.93 7.39 0.29 56.3
MFD20060D2-H 1.39 33.29 2500 14.57 513.66 9.24 0.36 60.2
MFD20060D2-HH 2.25 53.92 3000 17.49 616.4 11.08 0.44 65.8
MFD20060D2-VH 3.52 84.36 3500 20.4 719.14 12.93 0.51 70.5
MFD20060D4-L 48 36 ~ 55 0.18 8.61 1500 874 308.2 5.54 0.22 52
MFD20060D4-M 0.37 17.87 2000 11.66 410.93 7.39 0.29 56.3
MFD20060D4-H 0.66 31.62 2500 14.57 513.66 9.24 0.36 60.2
MFD20060D4-HH 1.07 51.23 3000 17.49 616.4 11.08 0.44 65.8
MFD20060D4-VH 1.67 80.14 3500 20.4 719.14 12.93 0.51 70.5

　
