60X60X15 BLOWER

model:MFB6015

add to inquiry
category： DC Blower 、DC (60mm / 140 mm)





MFB6015

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 65g

　

　

　

　

　

　

　

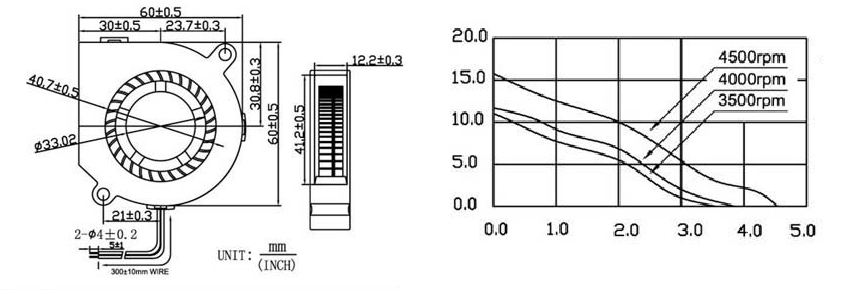

60 X 60 X 15 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maimun Air Flow Maimun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB6015D05-L 5 3.6 to 6.8 0.16 0.85 3500 0.1 3.55 10.8 0.43 33.4
MFB6015D05-M 0.2 1.95 4000 0.11 3.85 11.5 0.45 37.9
MFB6015D1-L 12 6.0 to 13.5 0.13 1.55 3500 0.1 3.55 10.8 0.43 33.4
MFB6015D1-M 0.2 2.4 4000 0.11 3.85 11.5 0.45 37.9
MFB6015D1-H 0.28 3.36 4500 0.12 4.45 15.53 0.61 40.6
MFB6015D2-M 24 18 to 26.5 0.12 2.88 4000 0.11 3.85 11.5 0.45 37.9
MFB6015D2-H 0.15 3.6 4500 0.12 4.45 15.53 0.61 40.6

　

　
