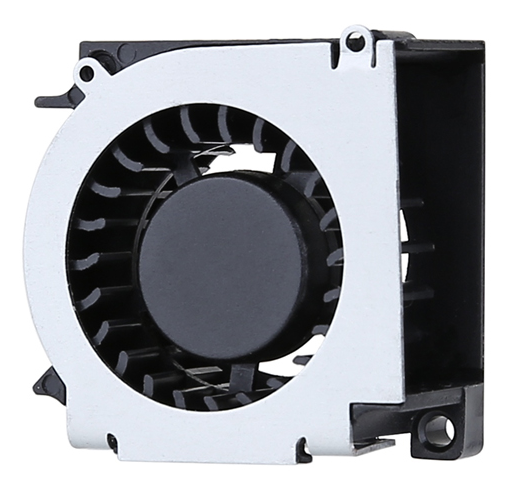

30X30X15 BLOWER

model:MFB3015

add to inquiry
category： DC Blower 、DC (18mm / 50 mm)





MFB3015

　

Bearing system: Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 10 g

　

　

　

　

　

　

　

30X 30 X 15 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maimun Air Flow Maimun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB3015D05-L 5 1.8 to 6.8 0.1 0.5 4000 0.03 1.07 2.18 0.86 17.9
MFB3015D05-M 0.12 0.6 5000 0.04 1.4 3.66 1.44 21.1
MFB3015D05-H 0.13 0.65 6000 0.048 1.7 6.04 2.38 25.3
MFB3015D1-L 12 7.0 to 13.5 0.042 0.5 4000 0.03 1.07 2.18 0.86 17.9
MFB3015D1-M 0.05 0.6 5000 0.04 1.4 3.66 1.44 21.1
MFB3015D1-H 0.054 0.65 6000 0.048 1.7 6.04 2.38 25.3

　

　
