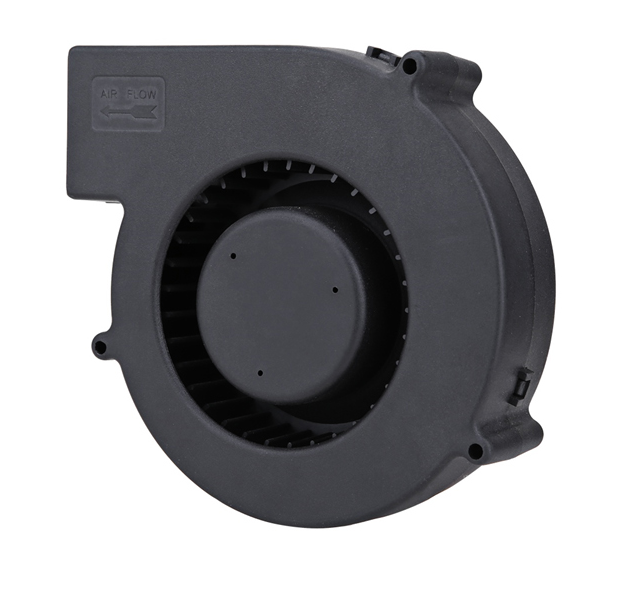

140X140X40mm BLOWER

model:MFB14040

add to inquiry
category： DC Blower 、DC (60mm / 140 mm)





MFB14040

　

Bearing system: Ball,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 355 g

　

　

　

　

　

　

　

140X 140 X 40 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maimun Air Flow Maimun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB14040D1-L 12 7.0 to 13.5 0.5 6 2000 1.058 37.3 8.2 0.323 56
MFB14040D1-M 1.4 16.8 2500 1.294 45.7 12.19 0.48 64.2
MFB14040D1-H 2.3 27.6 3000 1.549 54.7 17.74 0.698 65.7
MFB14040D1-HH 3.2 38.4 3500 1.926 68 33.75 1.329 68.9
MFB14040D1-VH 4.2 50.4 4000 2.164 76.4 45.48 1.791 70
MFB14040D1-HV 5.1 61.2 4500 2.489 87.9 59.15 2.329 71.9
MFB14040D2-L 24 18 to 26.5 0.25 6 2000 1.058 37.3 8.2 0.323 56
MFB14040D2-M 0.7 16.8 2500 1.294 45.7 12.19 0.48 64.2
MFB14040D2-H 1.15 27.6 3000 1.549 54.7 17.74 0.698 65.7
MFB14040D2-HH 1.6 38.4 3500 1.926 68 33.75 1.329 68.9
MFB14040D2-VH 2.1 50.4 4000 2.164 76.4 45.48 1.791 70
MFB14040D2-HV 2.55 61.2 4500 2.489 87.9 59.15 2.329 71.9
MFB14040D4-L 48 36 to 55 0.125 6 2000 1.058 37.3 8.2 0.323 56
MFB14040D4-M 0.35 16.8 2500 1.294 45.7 12.19 0.48 64.2
MFB14040D4-H 0.575 27.6 3000 1.549 54.7 17.74 0.698 65.7
MFB14040D4-HH 0.8 38.4 3500 1.926 68 33.75 1.329 68.9
MFB14040D4-VH 1.05 50.4 4000 2.164 76.4 45.48 1.791 70
MFB14040D4-HV 1.275 61.2 4500 2.489 87.9 59.15 2.329 71.9

　
　

　
