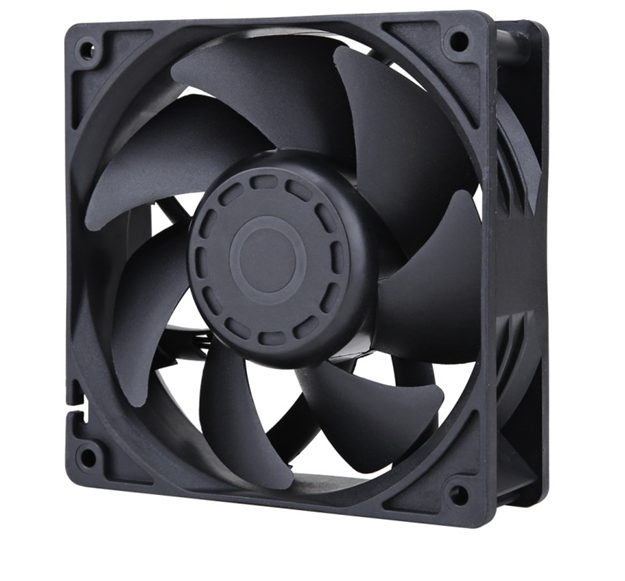

MFE12038

model:MFE12038

add to inquiry
category： EC FAN 、EC FAN





MFE12038

　

Bearing system: Ball,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 305g

　

　

　

　

　

　

　

120X 120 X 38 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VAC VAC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFE12038-L 220V 80~230V 0.15 3.6 2500 3.734 96.55 5.91 0.233 43.4
MFE12038-M 0.3 7.2 3000 3.151 111.26 8.66 0.341 47.7
MFE12038-VM 0.45 10.8 3500 3.742 132.14 11.94 0.47 52.8
MFE12038-H 0.6 14.4 4000 4.33 152.89 15.46 0.609 54.5
MFE12038-HH 0.75 18 4500 4.797 169.37 19.73 0.777 58.1
MFE12038-VH 0.9 21.6 5000 5.38 189.97 24.4 0.961 62.1

　
　

　
