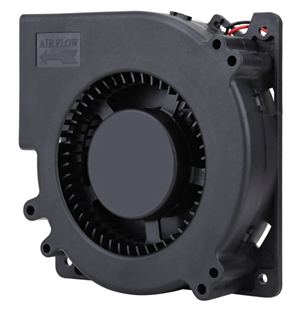

MFEB14040

model:MFEB14040

add to inquiry
category： EC FAN 、EC Blower





MFEB14040

　

Bearing system: Ball, SLEEVE

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 360 g

　

　

　

　

　

　

　

140X 140 X 40 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VAC VAC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFEB14040-L 220V 220-240 0.125 6 2000 1.058 37.3 8.2 0.323 56
MFEB14040-M 0.35 16.8 2500 1.294 45.7 12.19 0.48 64.2
MFEB14040-VM 0.575 27.6 3000 1.549 54.7 17.74 0.698 65.7
MFEB14040-H 0.8 38.4 3500 1.926 68 33.75 1.329 68.9
MFEB14040-HH 1.05 50.4 4000 2.164 76.4 45.48 1.791 70
MFEB14040-VH 1.275 61.2 4500 2.489 87.9 59.15 2.329 71.9

　
　

　
