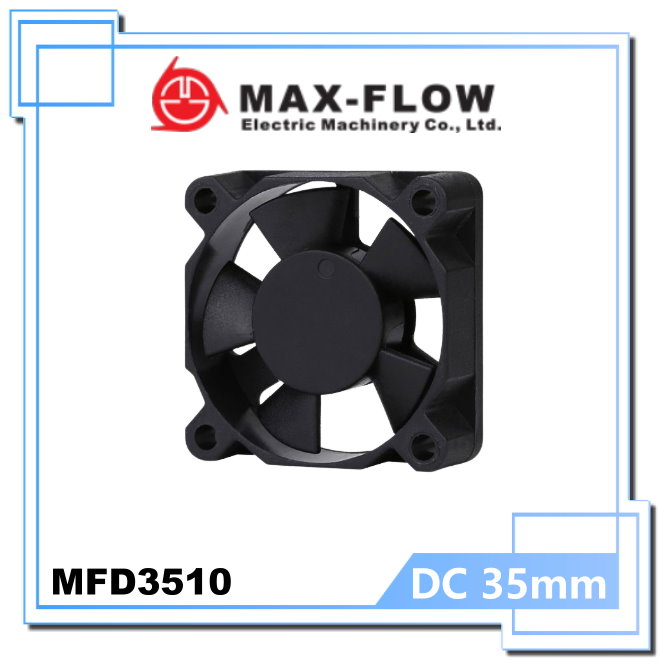

35X35X10mm

model:MFD3510

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD3510

　

　

Bearing system: BALL ,Sleeve ,HY

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp：

BALL: Within -10 ~ 80°C
Sleeve: Within -10 ~ 70°C

Life Expectancy：

BALL: 5,0000 hours at 25°C

Sleeve: 25,000 hours at 25°C

Weight: 9 g

　

　

　
　
 　


MODEL

Rated

Voltge

Operating

Voltage Range

Rated

Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD3510D05-M

5

1.8 ~ 6

0.1

0.5

7000

0.111

3.91

2.84

0.112

28

MFD3510D05-ML

0.12

0.6

8000

0.128

4.5

3.51

0.138

31

MFD3510D05-H

0.13

0.65

9000

0.142

5

4.31

0.17

34.4

MFD3510D05-LH

0.14

0.7

10000

0.151

5.32

5.12

0.202

37.1

MFD3510D05-HH

0.16

0.8

11000

1.171

6.06

6.11

0.241

39.4

MFD3510D05-HL

0.18

0.9

12000

0.182

6.39

6.77

0.267

41

MFD3510D05-VH

0.2

1

13000

0.195

6.87

7.97

0.314

42.6

MFD3510D05-HV

0.22

1.1

14000

0.211

7.41

8.74

0.344

44.7

MFD3510D1-M

12

8.5 ~13.5

0.042

0.5

7000

0.111

3.91

2.84

0.112

28

MFD3510D1-ML

0.05

0.6

8000

0.128

4.5

3.51

0.138

31

MFD3510D1-H

0.054

0.65

9000

0.142

5

4.31

0.17

34.4

MFD3510D1-LH

0.058

0.7

10000

0.151

5.32

5.12

0.202

37.1

MFD3510D1-HH

0.067

0.8

11000

1.171

6.06

6.11

0.241

39.4

MFD3510D1-HL

0.075

0.9

12000

0.182

6.39

6.77

0.267

41

MFD3510D1-VH

0.083

1

13000

0.195

6.87

7.97

0.314

42.6

MFD3510D1-HV

0.092

1.1

14000

0.211

7.41

8.74

0.344

44.7




　
