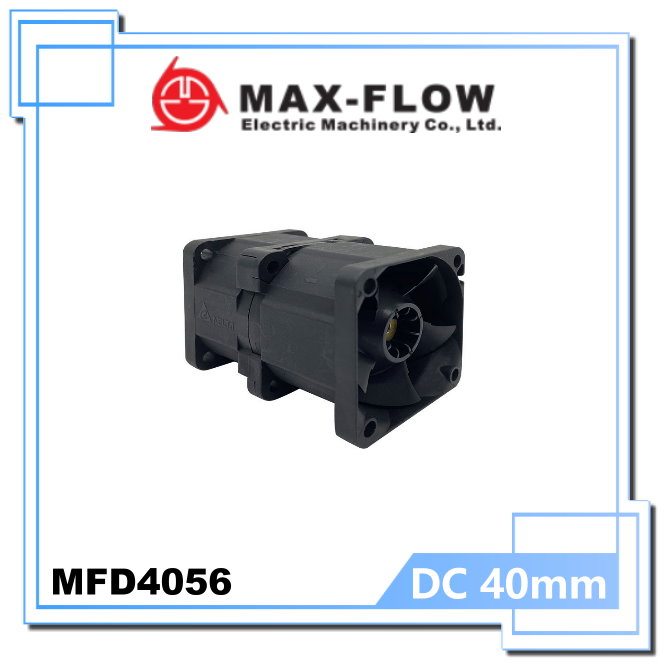

40X40X56mm

model:MFD4056

DC FAN SIZE 40X40X56mm
Available voltage options 12V , 24V
Speed 14000~19000RPM

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD4056

　

　

　

SIZE: 40 X 40 X 56 mm

Bearing system: BALL

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Operating Temp：

BALL : -20 ~ 80°C

Sleeve: Within -10 ~ 80°C
Life Expectancy：

BALL : 70,000 hours at 25°C

Weight: 90 g






MODEL

Rated

Voltge

Operating

Voltage Range

Rated

Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD4056D1-L

12

10.8~13.5

0.52

6.24

14000

0.65

22.95

36.83

1.45

54

MFD4056D1-M

0.6

7.2

15000

0.7

24.72

41.91

1.55

56

MFD4056D1-H

0.9

10.8

16700

0.77

27.19

51.054

2.01

58

MFD4056D1-HH

1.15

13.8

19000

0.87

30.72

54.262

2.53

61

MFD4056D2-L

24

18~26

0.26

6.24

14000

0.65

22.95

36.83

1.45

54

MFD4056D2-M

0.3

7.2

15000

0.7

24.72

41.91

1.55

56

MFD4056D2-H

0.45

10.8

16700

0.77

27.19

51.054

2.01

58

MFD4056D2-HH

0.6

13.8

19000

0.87

30.72

54.262

2.53

61




　
