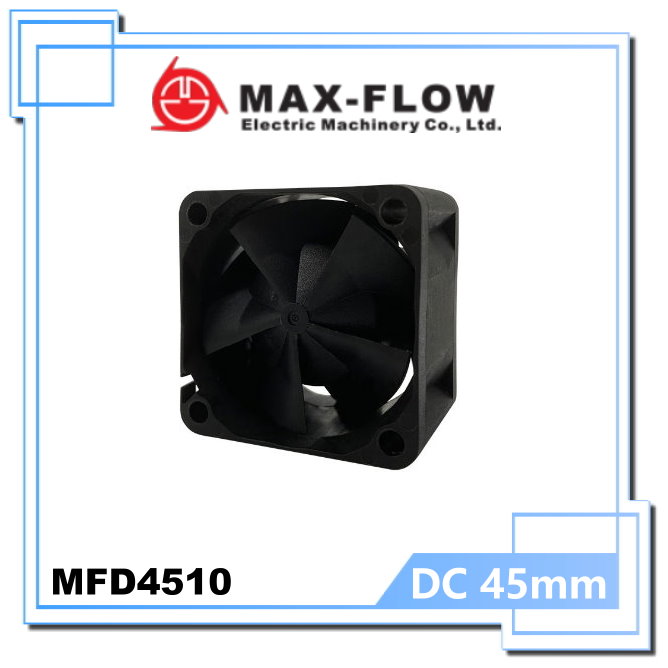

45X45X10mm

model:MFD4510

DC FAN SIZE 45X45X10mm
Available voltage options 5V, 12V
Speed 4000~7000RPM

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)








MFD4510

　

SIZE: 45 X 45 X 10 mm

Bearing system: BALL ,Sleeve,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Operating Temp：

BALL : -20 ~ 80°C

Sleeve: Within -10 ~ 60°C
Life Expectancy：

BALL : 50,000 hours at 25°C

Sleeve: 25,000  hours at 25°C

Weight: 20 g

　

　

MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated Input Power

Speed

Maximun Air Flow

Maximun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD4510D05-VL

5

1.8~6

0.1

0.46

4000

0.167

5.19

1.61

0.063

24.3

MFD4510D05-LL

0.12

0.6

4500

0.153

5.41

2.06

0.081

28.1

MFD4510D05-L

0.144

0.72

5000

0.183

6.46

2.50

0.098

30.2

MFD4510D05-LM

0.192

0.96

5500

0.195

6.88

2.92

0.115

33.9

MFD45010D05-M

0.24

1.2

6000

0.223

7.87

3.69

0.145

36.3

MFD4510D05-H

0.264

1.32

6500

0.233

8.24

3.89

0.53

37.3

MFD45010D05-HH

0.31

1.56

7000

0.250

8.85

4.5

0.177

39.3

MFD4510D1VL

12

8.5~13.5

0.04

0.46

4000

0.167

5.19

1.61

0.063

24.3

MFD4510D1-LL

0.05

0.6

4500

0.153

5.41

2.06

0.081

28.1

MFD4510D1-L

0.06

0.72

5000

0.183

6.46

2.50

0.098

30.2

MFD4510D1-LM

0.08

0.96

5500

0.195

6.88

2.92

0.115

33.9

MFD4501D1-M

0.10

1.2

6000

0.223

7.87

3.69

0.145

36.3

MFD4510D1-H

0.11

1.32

6500

0.233

8.24

3.89

0.53

37.3

MFD4510D1-HH

0.13

1.56

7000

0.250

8.85

4.5

0.177

39.3




　
