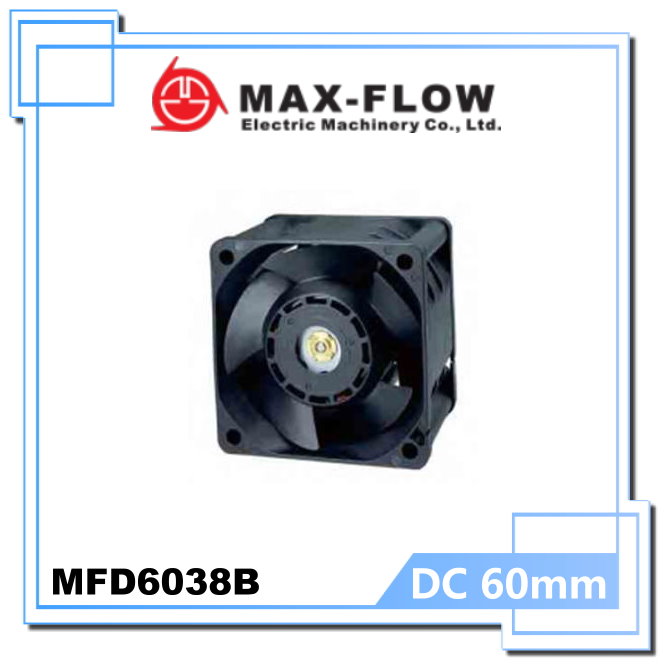

60X60X38mm B

model:MFD6038 B

DC FAN SIZE 60X60X38mm
Voltage options available 12V, 24V, 48V DC
Ultra-high speed 21700RPM

add to inquiry
category： DC FAN 、DC FAN ( 60/70mm )





MFD6038 B

　

　

　

SIZE: 60 X 60 X 38 mm

Bearing system: BALL

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp：

BALL : -20 ~ 80°C

Life Expectancy：

BALL : 50,000 hours at 25°C

Weight: 70 g

　

　

　

　
　
 　

MODEL

Rated Voltge

Operating

Voltage Range

Rated Current

Rated

 Input Power

Speed

Maximun Air Flow

Maximun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD6038AD1-L

12

7.5 ~ 13.5

2.7

32.4

21700

1.88

66.4

177.8

7

68

MFD6038AD2-L

24

18 ~ 26.5

1.35

32.4

21700

1.88

66.4

177.8

7

68

MFD6038AD4-L

48

36 ~ 54

0.68

32.4

21700

1.88

66.4

177.8

7

68

　

　



　
