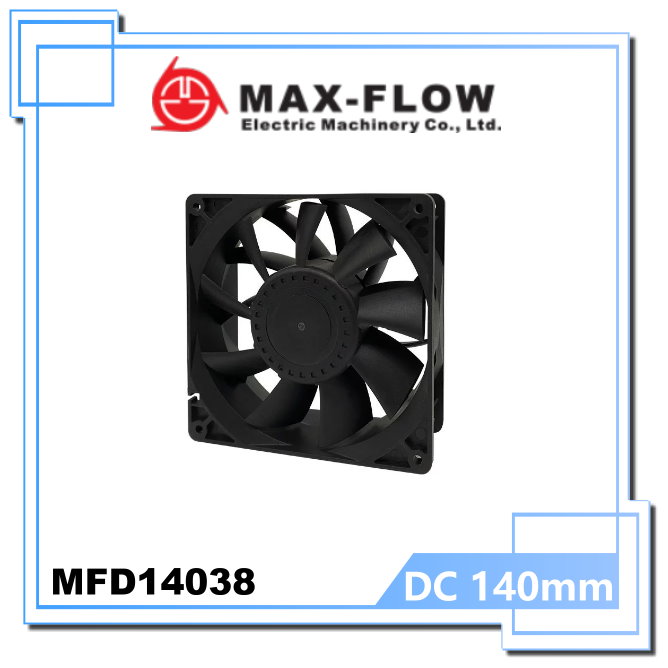

140X140X38mm

model:MFD14038

DC Cooling FAN SIZE 140X140X38mm
Voltage options available 12V, 24V, 48V DC
High air volume DC fan

add to inquiry
category： DC FAN 、DC FAN (120/172mm)





MFD14038

　

　

SIZE : 140 X 140 X 38

Bearing system: BALL

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp：

BALL : -20 ~ 80°C

Life Expectancy：

BALL : 50,000 hours at 25°C

Weight:450g

　

　

　

　

                                            　
　
 　

 MODEL

Rated Voltge

Operating

Voltage Range

Rated Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD14038D1-L

12

7.5 ~ 13.5

0.39

4.68

1800

3.774

133.3

4.24

0.167

43.8

MFD14038D1-M

0.51

6.12

2000

4.306

152.11

5.66

0.223

47.5

MFD14038D1-H

0.85

10.2

2500

5.411

191.13

8.74

0.344

53.5

MFD14038D1-HH

1.4

16.8

3000

6.532

230.73

12.4

0.488

66

MFD14038D1-VH

2.15

25.8

3500

7.598

266.37

16.35

0.777

68

MFD14038D1-HV

3.25

39

4000

8.698

307.25

21.5

0.961

62.1

MFD14038D2-L

24

18~ 26.5

0.2

4.68

1800

3.774

133.3

4.24

0.167

43.8

MFD14038D2-M

0.25

6.12

2000

4.306

152.11

5.66

0.223

47.5

MFD14038D2-H

0.42

10.2

2500

5.441

191.13

8.74

0.344

53.5

MFD14038D2-HH

0.7

16.8

3000

6.532

230.73

12.4

0.488

66

MFD14038D2-VH

1.07

25.8

3500

7.598

266.37

16.35

0.777

68

MFD14038D2-HV

1.63

39

4000

8.698

307.25

21.5

0.961

62.1

MFD14038D4-L

48

36 ~ 54

0.1

4.68

1800

3.774

133.3

4.24

0.167

43.8

MFD14038D4-M

0.12

6.12

2000

4.306

152.11

5.66

0.223

47.5

MFD14038D4-H

0.21

10.2

2500

5.411

191.13

8.74

0.344

53.5

MFD14038D4-HH

0.35

16.8

3000

6.532

230.73

12.4

0.488

66

MFD14038D4-VH

0.53

25.8

3500

7.598

266.37

16.35

0.777

68

MFD14038D4-HV

0.81

39

4000

8.698

307.25

21.5

0.961

62.1

　

                   　
