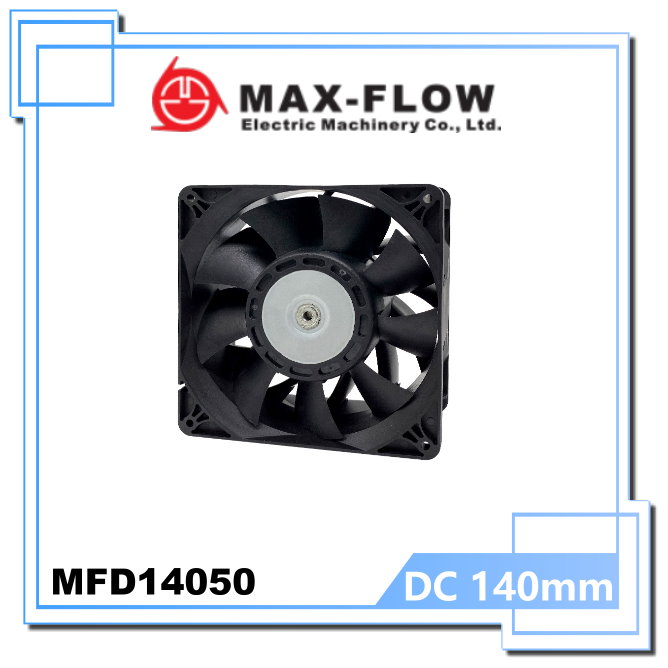

140X140X50mm

model:MFD14050

DC Cooling Fan
140X140X50mm
thw best DC FAN





MFD14050





SIZE : 140 X 140 X 50

Bearing system: BALL

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp

BALL : -20 ~ 80°C

Life Expectancy

BALL : 50,000 hours at 25°C

Weight:465g














MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated Input Power

Speed

Maximun Air Flow

Maximun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

CMM

CFM

mmAq

iAq

DB-A

MFD14050D1-L

12

7.5 ~ 13.5

1.8

21.6

2800

6.493

229.46

13.258

0.522

59.4

MFD14050D1-M

2.8

33.6

3200

7.503

265.12

17.018

0.67

62.5

MFD14050D1-H

3.2

38.4

3600

8.594

303.68

21.818

0.859

64.7

MFD14050D2-L

24

18~ 26.5

0.8

19.2

2800

6.493

229.46

13.258

0.522

59.4

MFD14050D2-M

1.1

26.4

3200

7.503

265.12

17.018

0.67

62.5

MFD14050D2-H

1.5

36

3600

8.594

303.68

21.818

0.859

64.7

MFD14050D4-L

48

36 ~ 54

0.36

17.28

2800

6.493

229.46

13.258

0.522

59.4

MFD14050D4-M

0.51

24.48

3200

7.503

265.12

17.018

0.67

62.5

MFD14050D4-M

0.73

35.04

3600

8.594

303.68

21.818

0.859

64.7

MFD14050D4-H

1.1

52.8

4300

10.21

360.8

29.387

1.157

68.1
