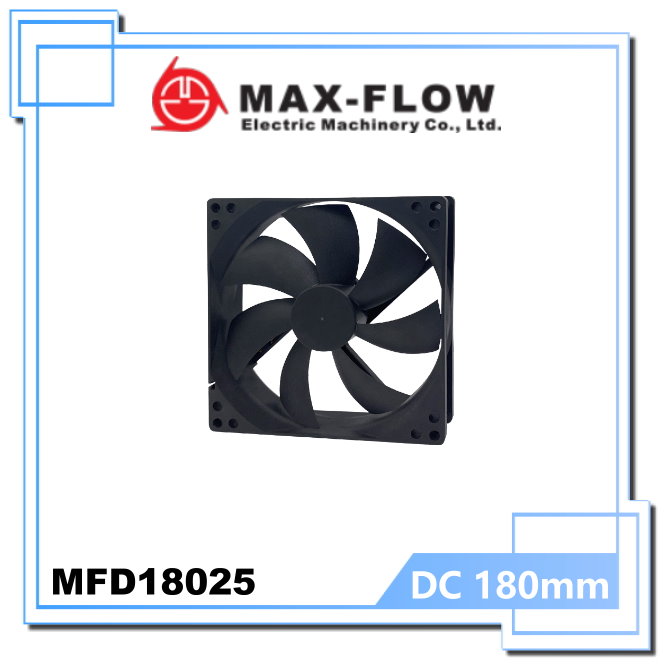

180X180X25mm

model:MFD18025

DC FAN 18025
High quality CASE FAN

add to inquiry
category： DC FAN 、DC FAN (180/250mm)





MFD18025

　

　

Size : 180 X 180 X 25mm

Bearing system: BALL ,Sleeve

Frame: PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp：

BALL : -20 ~ 70°C

Sleeve: Within -10 ~ 60°C
Life Expectancy：

BALL : 70,000 hours at 25°C

Sleeve: 25,000 hours at 25°C

Weight:301.5g

　

　

　

　

　

　 　
MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M CFM mmH2O DB-A
MFD18025D1-L 12 10.8~13.5 0.24 2.88 1000 89 2.41 24.5
MFD18025D1-M 0.3 3.6 1400 100 3 26
MFD18025D1-H 0.42 4.2 1800 123.8 3.5 30
MFD18025D2-L 24 18~26 0.12 2.88 1000 89 2.41 24.5
MFD18025D2-M 0.2 3.6 1400 100 3 26
MFD18025D2-HH 0.23 4.14 1800 123.8 3.5 30

　

　
