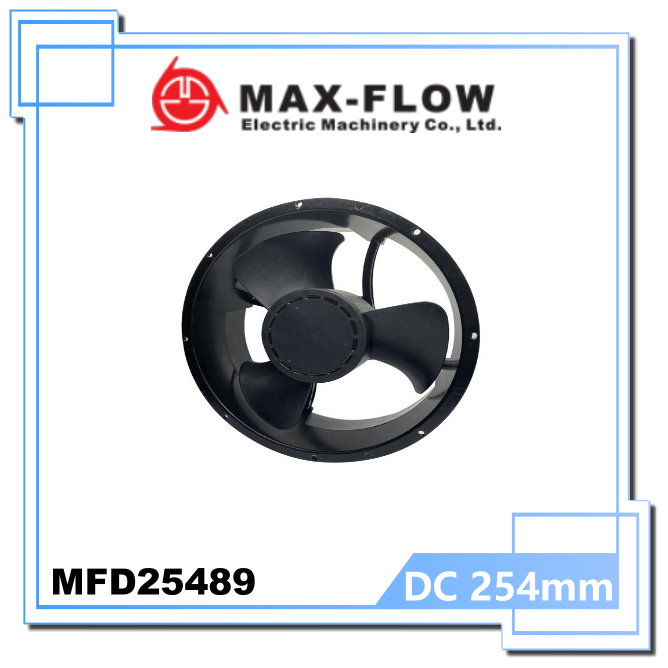

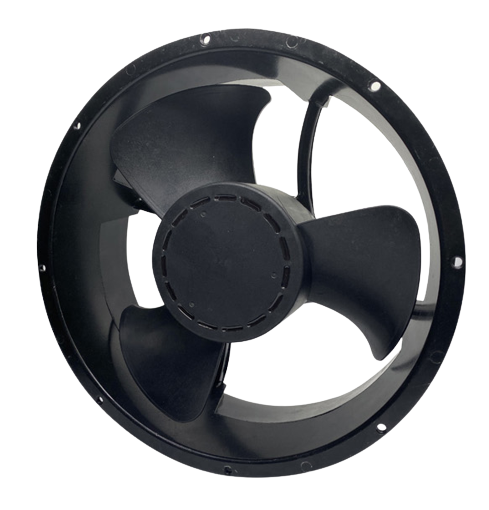

Ø 254X89mm

model:MFD25489

25cm DC Cooling Fan





MFD25489





Size : Ø 254 X 89 mm

Bearing system: BALL

Frame: Aluminum

Impeller: PBT UL94V-0

Operating Temp

Ball: Within -20 ~ 70°C
Life Expectancy

Ball: 50,000 hours at 25°C

Weight: 2600 g















MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated Input Power

Speed

Maximun Air Flow

Maximun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD25489D1-L

12

7~ 13.5

0.75

9

1000

8.07

305.3

11.8

0.46

53.4

MFD25489D1-M

3.5

42

2000

15.58

548.6

15.4

0.61

66.1

MFD25489D1-H

5.5

66

2500

19.64

691.8

24.7

0.97

71.2

MFD25489D1-VH

7.4

88.8

3000

24.07

847.8

32.6

1.28

75.6

MFD25489D2-L

24

18 ~26.5

0.5

12

1000

8.07

305.3

11.8

0.46

53.4

MFD25489D2-M

1.5

36

2000

15.58

548.6

15.4

0.61

66.1

MFD25489D2-H

2.9

69.6

2500

19.64

691.8

24.7

0.97

71.2

MFD25489D2-HH

3.7

88.8

3000

24.07

847.8

32.6

1.28

75.6

MFD25489D2-VH

48

36 ~54

5.7

136.8

3500

29.4

1035.8

38.6

1.52

80.4

MFD25489D2-HV

7.8

187.2

4000

36.81

1296.44

42.1

1.66

89.6

MFD25489D4-L

0.2

9.6

1000

8.07

305.3

11.8

0.46

53.4

MFD25489D4-M

0.8

38.4

2000

15.58

548.6

15.4

0.61

66.1
