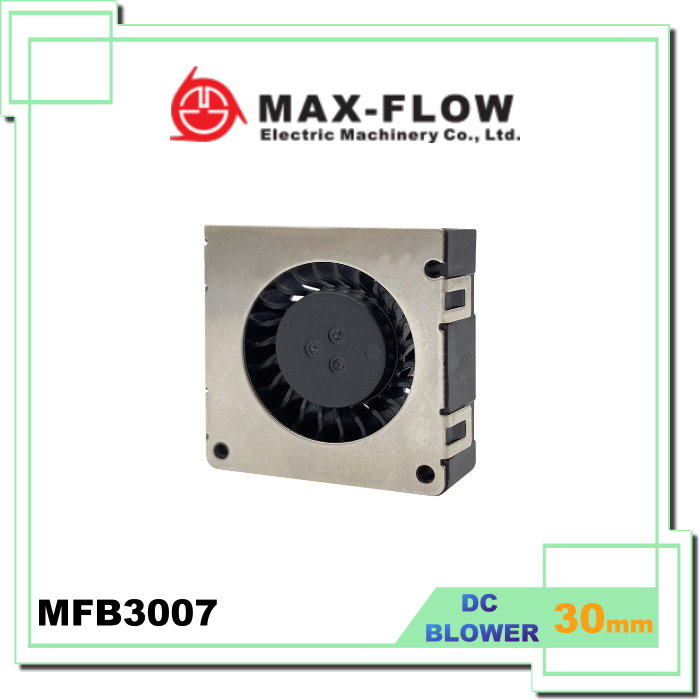

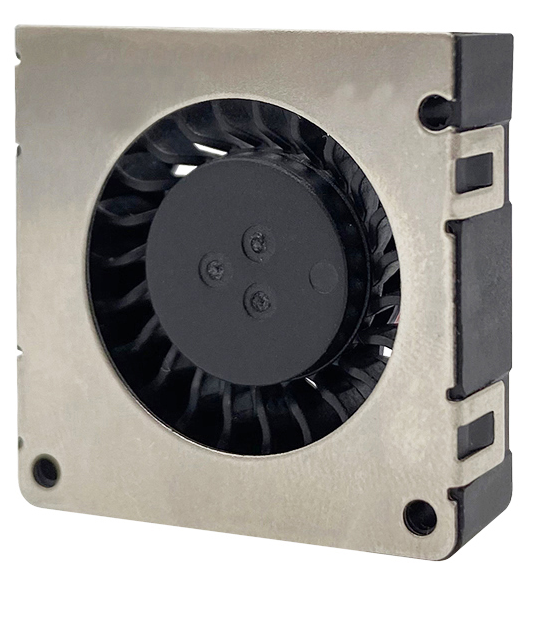

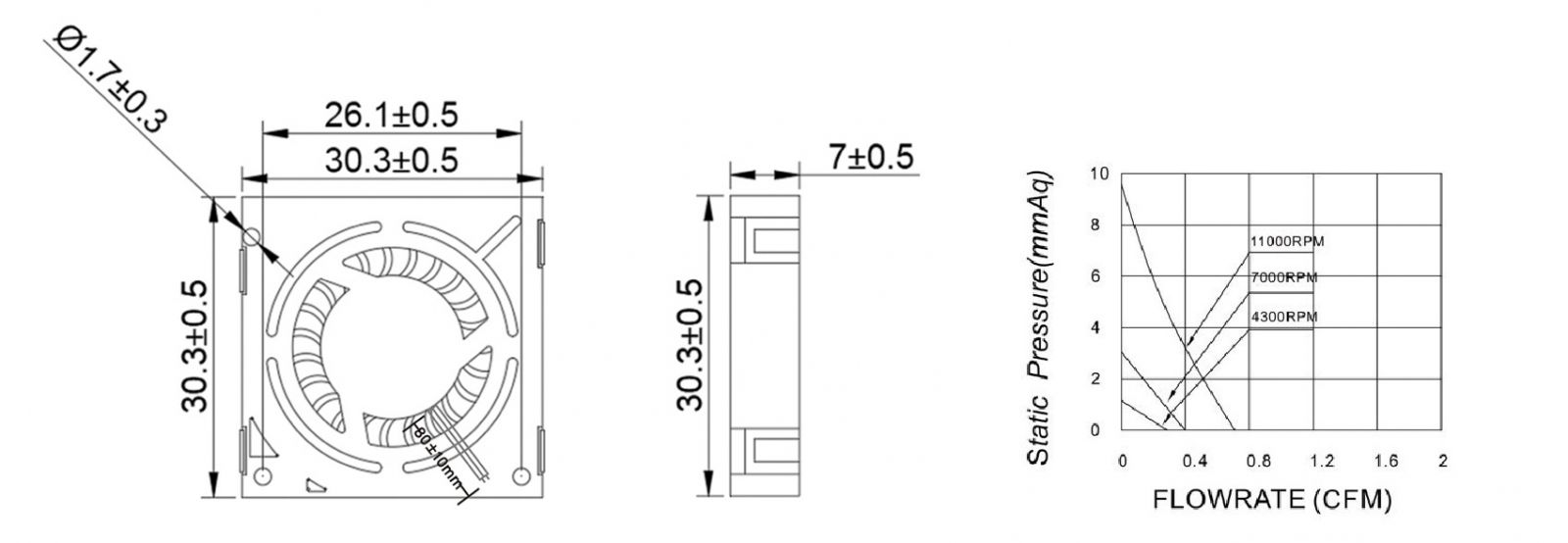

30X30X07mm BLOWER model:MFB3007 30X30X07mm DC BLOWER Voltage 5V Bearing system Sleeve speed L M H Signal function 1 FG PWM RD Signal function 2 FG PWM RD add to inquiry print category: DC Blower 、DC (18mm / 50 mm) Product Specifications Frame size & PQ drawing Product structure introduction MFB3007 Size : 30 x 30 x 7 mm Bearing system: Sleeve Frame: PBT UL94V-0 Impeller:PBT UL94V-0 Operating Temp: Sleeve: Within -10 ~ 60°C Life Expectancy: HY,Sleeve: 25,000 hours at 25°C Weight: 6g MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power Speed Maximun Air Flow Maximun Air Pressure Noise PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A MFB3007D05-L 5 3 ~ 6 0.08 0.08 5000 0.024 0.84 4.08 0.161 23.9 MFB3007D05-M 5 3 ~ 6 0.12 0.12 6000 0.031 1.11 5.92 0.233 27.2 MFB3007D05-H 5 3 ~ 6 0.18 0.18 7500 0.039 1.39 9.84 0.387 32.3 MFB3007D1-L 5 3 ~ 6 0.033 0.08 5000 0.024 0.84 4.08 0.161 23.9 MFB3007D1-M 5 3 ~ 6 0.05 0.12 6000 0.031 1.11 5.92 0.233 27.2 MFB3007D1-H 5 3 ~ 6 0.075 0.18 7500 0.039 1.39 9.84 0.387 32.3 Related Products more 30X30X07mm BLOWER more 40X40X20mm more 60X60X15mm more 20X20X06mm BLOWER more 50X50X10 BLOWER more 92X92X25mm B more MFC28080(280x80mm) more 70X70X15mm more 40X40X20mm BLOWER more 60X60X25mm C
