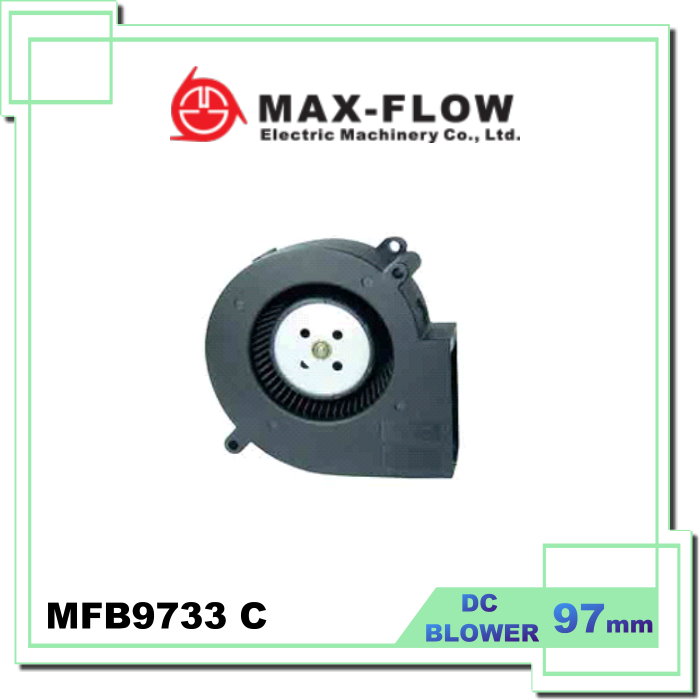

97X95.5X33mm C BLOWER

model:MFB9733 C

Ultra-large static pressure blower
97X95.5X33mm

add to inquiry
category： DC Blower 、DC (60mm / 140 mm)





MFB9733 C

　

　

Size : 97 x 95.5 x 33 mm
Frame: PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp：

BALL : -20 ~ 70°C
Life Expectancy：

BALL : 50,000 hours at 25°C

Weight: 200 g


　

　

　

　

　　
　 　

 MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated Input Power

Speed

Maimun Air Flow

Maimun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFB9733BD1-HV

12

7.0 ~ 13.2

6.2

74.4

8200

1.85

65.3

198.77

7.83

69

MFB9733BD2-HV

24

12 ~ 2645

3.1

74.4

8200

1.85

65.3

198.77

7.83

69

　
