DC 风扇
MFD17251R
172 x 150 x 51mm
风量
172.2~532.1 CFM
转速
2500~9200 RPM
噪音
56.1~90 dB(A)
产品规格
| 尺寸 | 172 x 150 x 51mm |
| 电压 | 5V / 12V / 24V / 48V DC |
| 框架 | 铝合金 |
| 扇叶 | 塑胶 PBT UL94V-0 |
| 轴承类型 | 滚珠轴承 |
| 工作温度 | 滚珠轴承: -10 ~ 70°C |
| 预期寿命 | 滚珠轴承: 50,000 小时 (25°C) |
型号与规格
| 型号 | 电压 (V) | 电流 (A) | 功率 (W) | 转速 (RPM) | 风量 (CFM) | 静压 (mmH₂O) | 噪音 (dB-A) | 轴承 |
|---|---|---|---|---|---|---|---|---|
| MFD17251RD1-HB | 12 | 1.5 | 18 | 3500 | 248.09 | 21.33 | 62.5 | 滚珠 |
| MFD17251RD1-HHB | 12 | 2.1 | 25.2 | 4000 | 283 | 27.36 | 65.5 | 滚珠 |
| MFD17251RD1-HVB | 12 | 4 | 48 | 5000 | 361.69 | 45.36 | 71.4 | 滚珠 |
| MFD17251RD1-LB | 12 | 0.6 | 7.2 | 2500 | 172.21 | 10.92 | 56.1 | 滚珠 |
| MFD17251RD1-MB | 12 | 1 | 12 | 3000 | 209.4 | 15.33 | 58.3 | 滚珠 |
| MFD17251RD1-VHB | 12 | 3.2 | 38.4 | 4500 | 325.57 | 37.57 | 68.2 | 滚珠 |
| MFD17251RD2-HB | 24 | 0.7 | 16.8 | 3500 | 248.09 | 21.33 | 62.5 | 滚珠 |
| MFD17251RD2-HHB | 24 | 1.07 | 25.68 | 4000 | 283 | 27.36 | 65.5 | 滚珠 |
| MFD17251RD2-HVB | 24 | 2 | 48 | 5000 | 361.69 | 45.36 | 71.4 | 滚珠 |
| MFD17251RD2-LB | 24 | 0.3 | 7.2 | 2500 | 172.21 | 10.92 | 56.1 | 滚珠 |
| MFD17251RD2-MB | 24 | 0.5 | 12 | 3000 | 209.4 | 15.33 | 58.3 | 滚珠 |
| MFD17251RD2-VHB | 24 | 1.06 | 38.4 | 4500 | 325.57 | 37.57 | 68.2 | 滚珠 |
| MFD17251RD4-HB | 48 | 0.3 | 14.4 | 3500 | 248.09 | 21.33 | 62.5 | 滚珠 |
| MFD17251RD4-HHB | 48 | 0.5 | 24 | 4000 | 283 | 27.36 | 65.5 | 滚珠 |
| MFD17251RD4-HVB | 48 | 1 | 48 | 5000 | 361.69 | 45.36 | 71.4 | 滚珠 |
| MFD17251RD4-LB | 48 | 0.15 | 7.2 | 2500 | 172.21 | 10.92 | 56.1 | 滚珠 |
| MFD17251RD4-MB | 48 | 0.25 | 12 | 3000 | 209.4 | 15.33 | 58.3 | 滚珠 |
| MFD17251RD4-VHB | 48 | 0.8 | 38.4 | 4500 | 325.57 | 37.57 | 68.2 | 滚珠 |
| MFD17251RD4-LB | 48 | 3.2 | 153.6 | 9200 | 532.07 | 116.19 | >90 | 滚珠 |

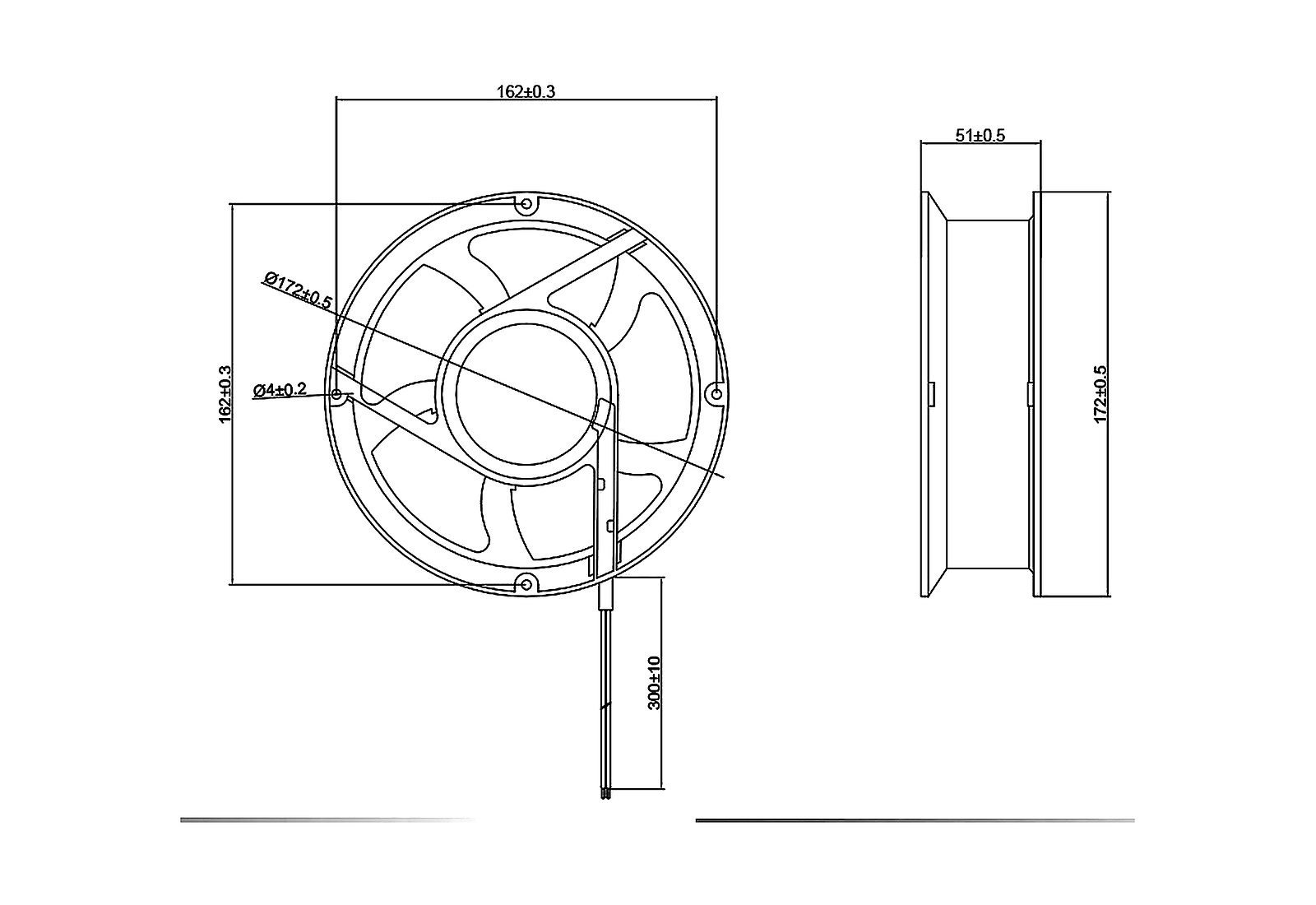

尺寸圖

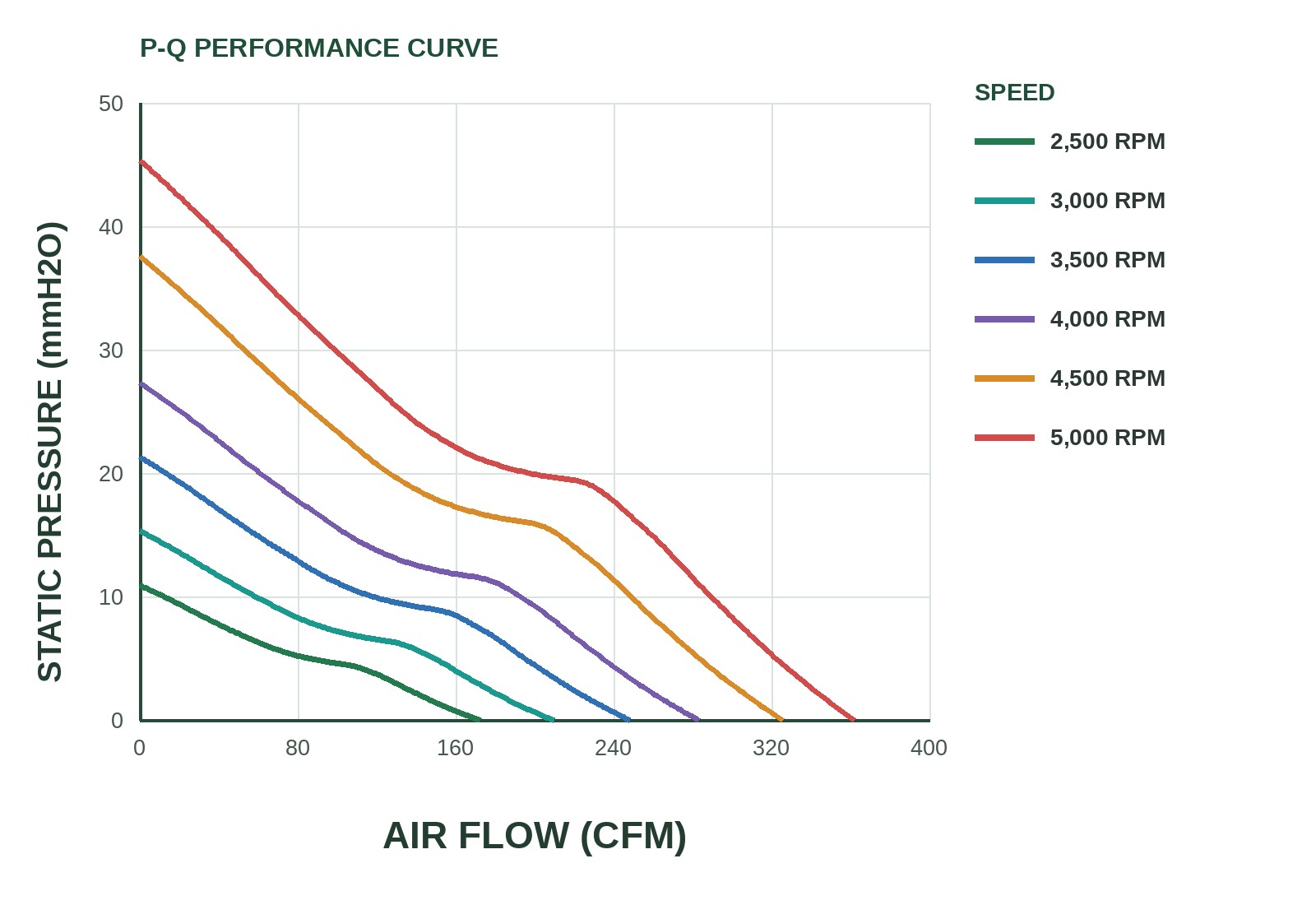

P&Q 曲線图
