MODEL

Rated

 Voltge

Operating

Voltage Range

Rated

Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

 Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

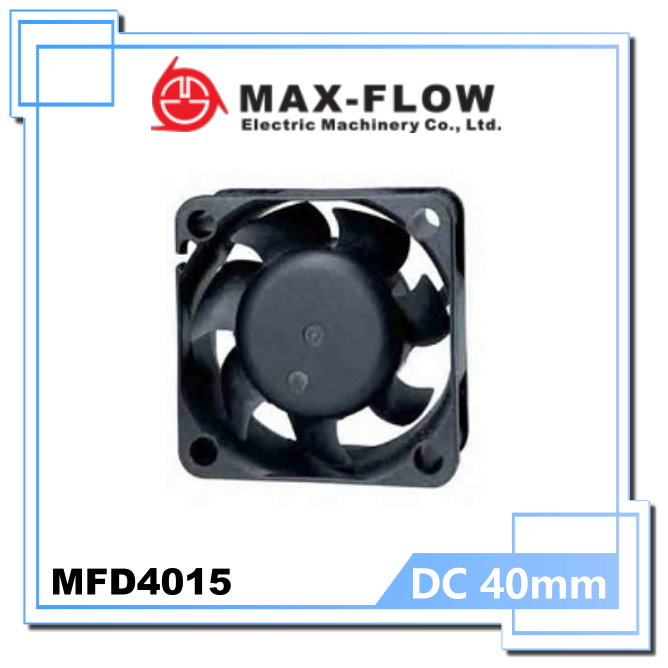

MFD4015D05-L

5

1.8 ~ 6

0.15

0.75

5000

0.184

6.50

3.67

0.114

18.5

MFD4015D05-M

0.22

1.10

6000

0.230

8.12

5.12

0.202

24.5

MFD4015D05-H

0.24

1.20

7000

0.268

9.46

6.92

0.272

28.5

MFD4015D05-HH

0.32

1.60

8300

0.325

11.48

9.13

0.359

32.0

MFD4015D05-VH

0.38

1.90

9500

0.368

13.00

11.66

0.459

36.5

MFD4015D1-L

12

7.5 ~ 13.5

0.06

0.72

5000

0.184

6.50

3.67

0.144

18.5

MFD4015D1-M

0.09

1.08

6000

0.230

8.12

5.12

0.202

24.5

MFD4015D1-H

0.10

1.20

7000

0.268

9.46

8.92

0.272

28.5

MFD4015D1-HH

0.13

1.56

8300

0.325

11.48

9.13

0.359

32.0

MFD4015D1-VH

0.16

1.92

9500

0.368

13.00

11.66

0.459

36.5

MFD4015D1-HV

0.25

3.00

11000

0.420

14.83

15.26

0.601

41.5

MFD4015D2-L

24

18~26.5

0.05

1.20

5000

0.184

6.50

3.67

0.114

18.5

MFD4015D2-M

0.06

1.44

6000

0.230

8.12

5.12

0.202

24.5

MFD4015D2-H

0.08

1.92

7000

0.268

9.46

6.92

0.272

28.5

MFD4015D2-HH

0.09

2.16

8300

0.325

11.48

9.13

0.359

32.0

MFD4015D2-VH

0.10

2.40

9500

0.368

13.00

11.66

0.459

36.5

MFD4015D2-HV

0.12

2.88

11000

0.420

14.83

15.26

0.601

41.5
