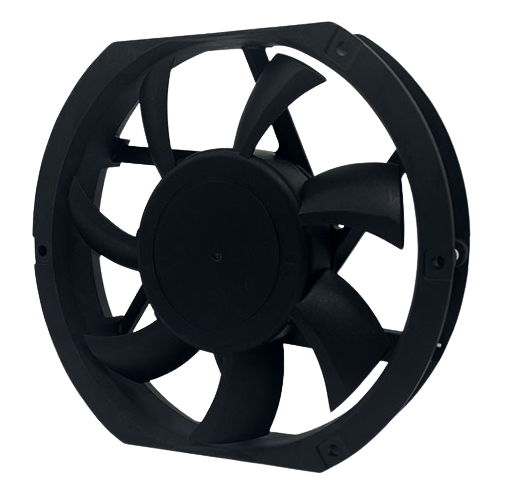

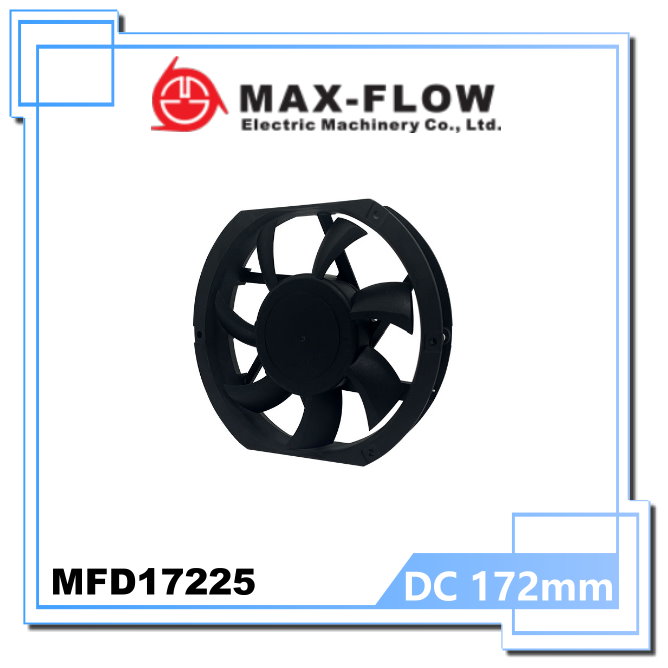

172X150X25mm

型號:MFD17225

直流散熱風扇

17公分超薄型 ,大風量 低功率





MFD17225





SIZE : 172 X 150 X 25

Bearing system: BALL

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp

BALL : -20 ~ 70°C

Life Expectancy

BALL : 50,000 hours at 25°C

Weight:430g













MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated Input Power

Speed

Maximun Air Flow

Maximun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD17225D1-L

12

7.5 ~ 13.5

0.56

6.72

2400

4.110

145.16

6.92

0.272

48.1

MFD17225D1-M

0.76

9.12

2700

4.508

159.2

8.79

0.346

51

MFD17225D1-H

0.98

11.76

3000

5.313

181.22

10.47

0.412

54.1

MFD17225D1-HH

1.17

14.04

3200

5.456

192.68

12.11

0.476

55.7

MFD17225D1-VH

3

36

4000

6.966

246.03

18.41

0.737

62.90

MFD17225D2-L

24

18 ~ 26.5

0.31

7.44

2400

4.110

145.16

6.92

0.272

48.1

MFD17225D2-M

0.4

9.60

2700

4.508

159.2

8.79

0.346

51

MFD17225D2-H

0.5

12.00

3000

5.313

181.22

10.47

0.412

54.1

MFD17225D2-HH

0.62

14.88

3200

5.456

192.68

12.11

0.476

55.7

MFD17225D2-VH

1.6

38.4

4000

6.966

246.03

18.41

0.737

62.90

MFD17225D4-L

48

36 ~ 55

0.17

8.16

2400

4.110

145.16

6.92

0.272

48.1

MFD17225D4-M

0.22

10.56

2700

4.508

159.2

8.79

0.346

51

MFD17225D4-H

0.27

12.96

3000

5.313

181.22

10.47

0.412

54.1

MFD17225D4-HH

0.31

14.88

3200

5.456

192.68

12.11

0.476

55.7

MFD17225D4-VH

0.8

38.4

4000

6.966

246.03

18.41

0.737

62.90
