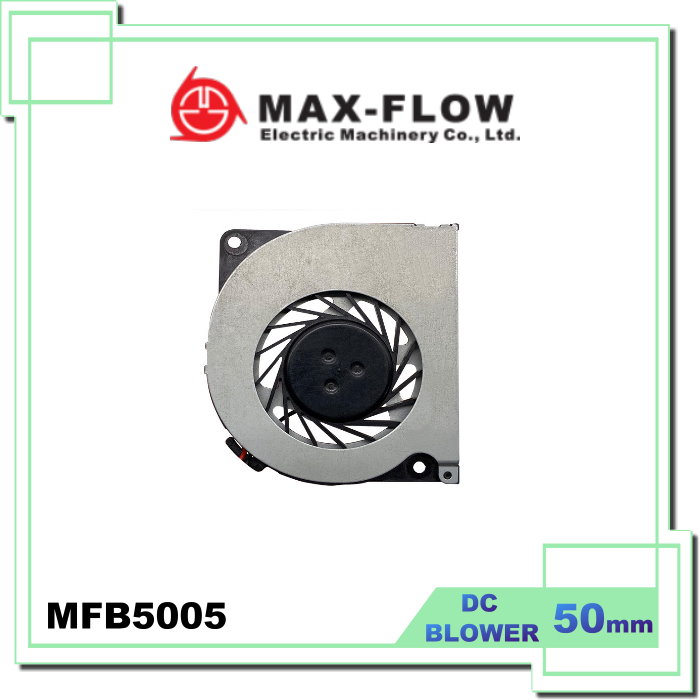

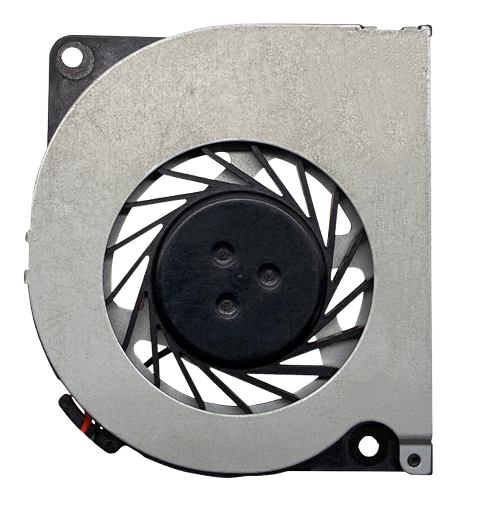

50X50X05 mm 鼓風機

型號:MFB5005

直流鼓風機
50X50X5





MFB5005





Size : 50 x 50 x 5 mm
Frame: PBT UL94V-0

Impeller:PBT UL94V-0

Operating Temp

Sleeve: Within -10 ~ 60°C
Life Expectancy

HY,Sleeve: 25,000 hours at 25°C

Weight: 14 g














MODEL

Rated

Voltge

Operating

Voltage Range

Rated

Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

 Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

CFM

mmH2O

DB-A

MFB5005D05-L

5

3.5 ~ 5.5

0.08

0.4

3500

1.76

2

18

MFB5005D05-H

5

3.5 ~ 5.5

0.12

0.6

4500

2.12

2.2

19

MFB5005D05-L

12

6.0 ~ 13.8

0.04

0.48

3500

1.76

2

18

MFB5005D05-H

12

6.0 ~ 13.8

0.05

0.6

4500

2.12

2.2

19
