DC 離心風扇
MFL17574
Ø175x74mm
DC centrifugal fan engineered for applications requiring higher static pressure and directed airflow. Features efficient backward-curved impeller design with low noise operation.
風量
N/A
轉速
N/A
噪音
N/A
產品規格
| 風扇類型 | DC 離心風扇 |
|---|---|
| 額定電壓 | 12 VDC / 24 VDC / 48 VDC |
| 轉速 | 2200 ~ 4300 RPM |
| 最大風量 | 206.2 ~ 403.1 CFM |
| 最大靜壓 | 39.2 ~ 76.7 mmH₂O |
| 噪音值 | 37.5 ~ 73.3 dB-A |
| 軸承 | 滾珠軸承 |
| 框架材質 | 鋁合金 |
| 認證 | CE, UL, ETL, RoHS |
型號與規格
| 型號 | 額定電壓 (V) | 工作電壓範圍 (V) | 額定電流 (A) | 輸入功率 (W) | 轉速 (RPM) | 最大風量 (CFM) | 最大靜壓 (mmH₂O) | 噪音 (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL17574D1-L | 24 | 18 ~ 26.5 | 1 | 24 | 2200 | 206.2 | 39.2 | 37.5 |
| MFL17574D1-M | 2.1 | 50.4 | 3100 | 290.6 | 55.3 | 52.8 | ||
| MFL17574D1-H | 4.6 | 110.4 | 4000 | 375 | 71.3 | 68.2 | ||
| MFL17574D2-L | 48 | 36 ~ 54 | 0.4 | 19.2 | 2300 | 215.6 | 41 | 59.2 |
| MFL17574D2-M | 1.1 | 52.8 | 3200 | 300 | 57.1 | 54.5 | ||
| MFL17574D2-H | 2.6 | 124.8 | 4300 | 403.1 | 76.7 | 73.3 | ||
| MFL17574D1-L | 24 | 18 ~ 26.5 | 1 | 24 | 2200 | 206.2 | 39.2 | 37.5 |
| MFL17574D1-M | 2.1 | 50.4 | 3100 | 290.6 | 55.3 | 52.8 | ||
| MFL17574D1-H | 4.6 | 110.4 | 4000 | 375 | 71.3 | 68.2 | ||
| MFL17574D2-L | 48 | 36 ~ 54 | 0.4 | 19.2 | 2300 | 215.6 | 41 | 59.2 |
| MFL17574D2-M | 1.1 | 52.8 | 3200 | 300 | 57.1 | 54.5 | ||
| MFL17574D2-H | 2.6 | 124.8 | 4300 | 403.1 | 76.7 | 73.3 |
完整規格
| 型號 | MFL17574 |
| 尺寸 | Ø175x74mm |
| 風量 | 2,200 ~ 4,300 RPM |
| 轉速 | 2,200 ~ 4,300 RPM |
| 噪音值 | 206.2 ~ 403.1 CFM |
| 電壓 | 12V / 24V / 48V DC |
| 軸承 | 滾珠軸承 |
| 軸承類型 | 滾珠軸承 / 含油軸承 |
| 工作溫度 | 滾珠軸承: -10 ~ 70°C / 含油軸承: 0 ~ 60°C |
| 預期壽命 | 滾珠軸承: 50,000 小時 (25°C) / 含油軸承: 30,000 小時 (25°C) |

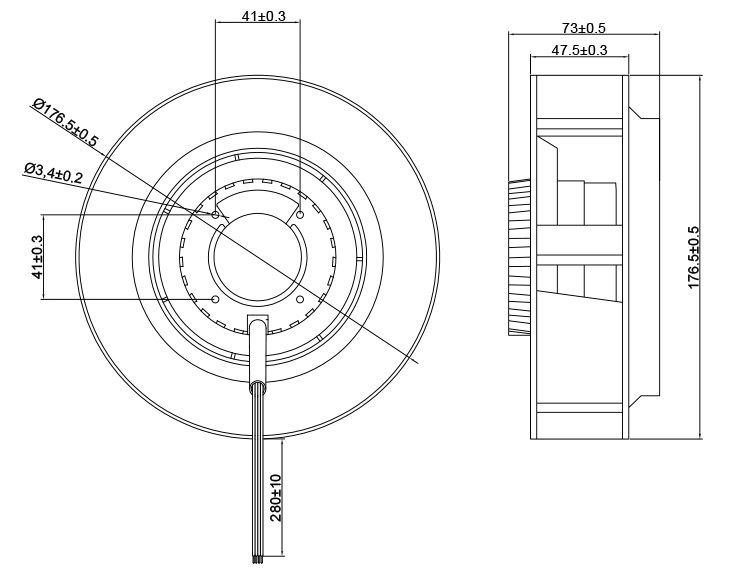

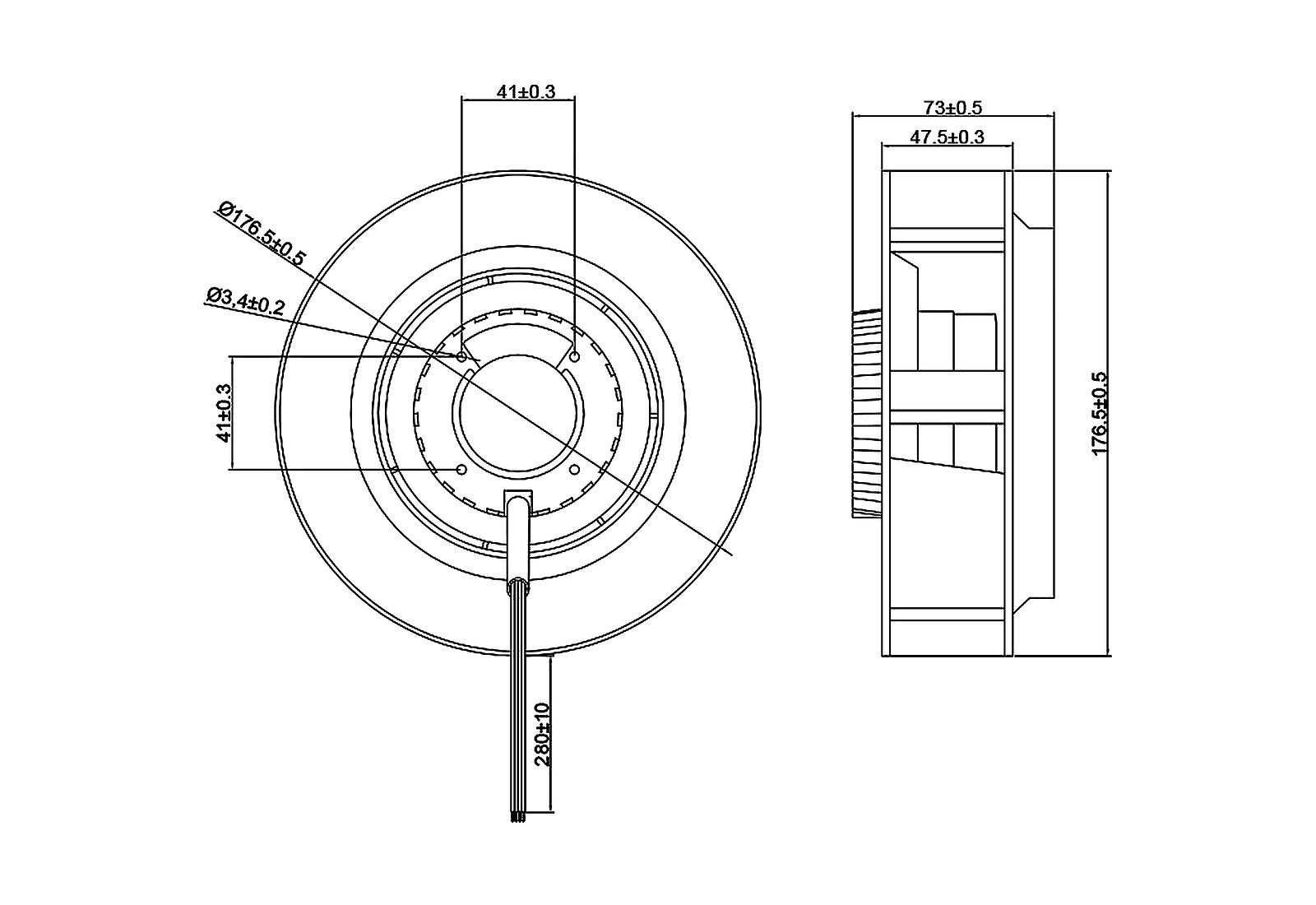

尺寸圖

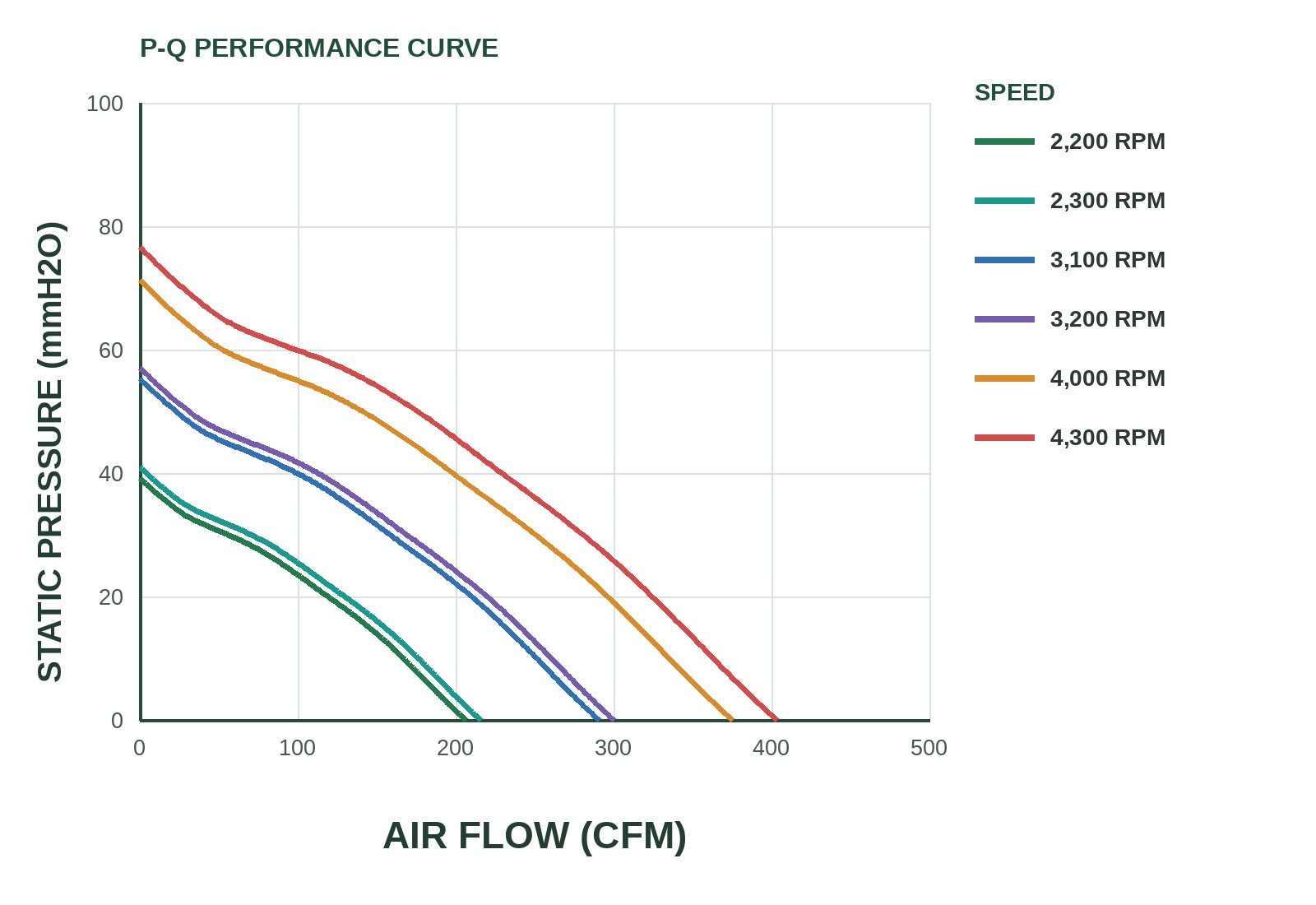

P&Q 曲線圖
