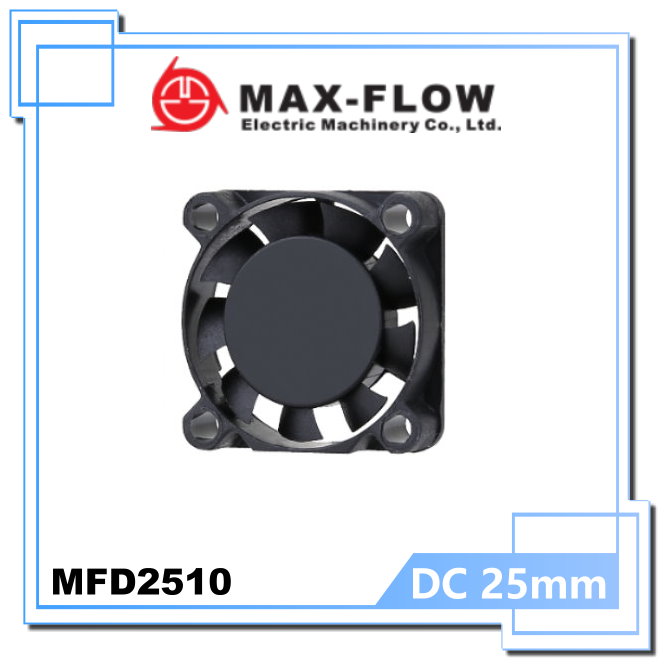

25X25X10mm

型號:MFD2510

微型散熱風扇 DC FAN,小尺寸 高轉速





MFD2510



SIZE: 25 X 25 X 10 mm

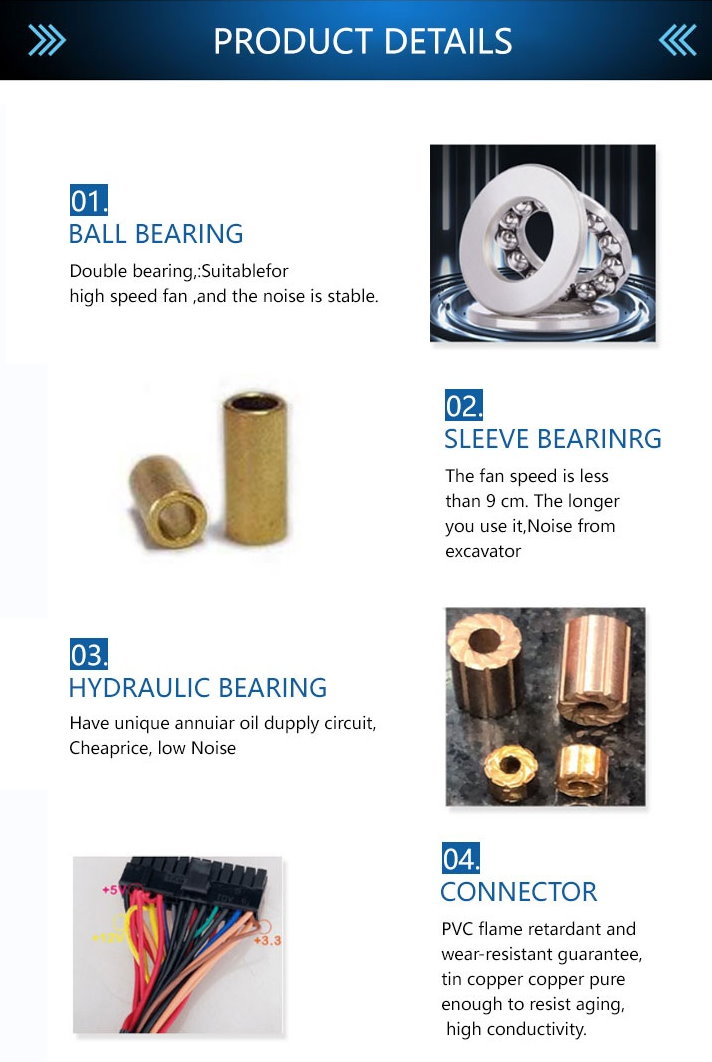

Bearing system: BALL ,Sleeve ,HY

Frame:  PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp

BALL: Within -10 ~ 80°C

Sleeve: Within -10 ~ 70°C

Life Expectancy

BALL: 5,0000 hours at 25°C

Sleeve: 25,000 hours at 25°C

Weight: 5 g








MODEL

Rated Voltge

Operating

Voltage Range

Rated

 Current

Rated

 Input Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD2510D05-L

5

3.6 ~ 6.8

0.14

0.55

8500

0.029

1.01

1.86

0.073

17.8

MFD2510D05-M

0.17

0.85

10500

0.041

1.44

3.24

0.128

27.2

MFD2510D05-H

0.19

1.15

12000

0.049

1.72

3.88

0.153

28.9

MFD2510D05-HH

0.22

1.5

13500

0.067

2.35

6.87

0.270

32.9

MFD2510D05-VH

0.24

1.2

16000

0.074

2.63

8.73

0.344

37.6

MFD2510D1-L

12

6.0 ~ 13.5

0.06

0.36

8500

0.029

1.01

1.86

0.073

17.8

MFD2510D1-M

0.07

0.72

10500

0.041

1.44

3.24

0.128

27.2

MFD2510D1-H

0.08

1.08

12000

0.049

1.72

3.88

0.153

28.9

MFD2510D1-HH

0.09

1.08

13500

0.067

2.35

6.87

0.270

32.9

MFD2510D1-VH

0.1

1.2

16000

0.074

2.63

8.73

0.344

37.6
