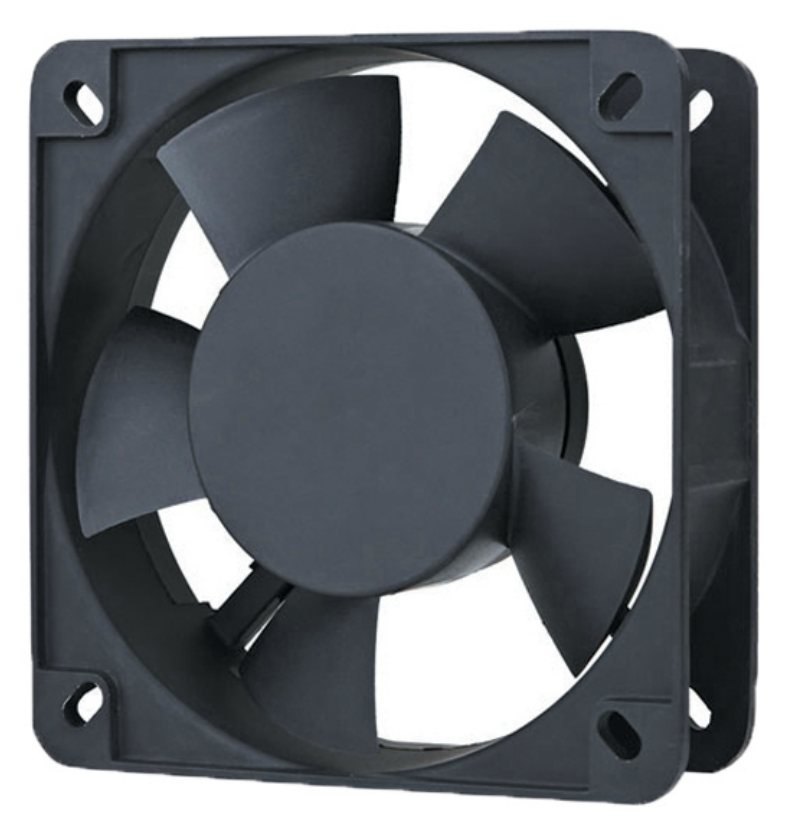

AC Axial Fan
MF13538
135 x 135 x 38 mm
Airflow
93~141 CFM
Speed
2100~3000 RPM
Noise
39~45 dB(A)
Product Specifications
| Size | 135 x 135 x 38 mm |
| Voltage | 110 / 220 / 380 VAC, 50/60 Hz |
| Motor | AC Motor |
| Frame | Aluminum Die-Cast |
| Impeller | Engineering Plastic (UL94V-0) |
| Bearing Type | Ball Bearing |
| Weight | 570 g |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF13538A1-HBAPL | 110/120 | 50/60 | 0.2* | 23/21 | 2600/3000 | 115/141 | 0.26/0.27 | 43/45 | 570 |
| MF13538A1-LBAPL | 110/120 | 50/60 | 0.12 | 10/9 | 2100/2400 | 93/107 | 0.07/0.11 | 39/41 | 570 |
| MF13538A1-MBAPL | 110/120 | 50/60 | 0.2* | 15/14 | 2400/2700 | 107/120 | 0.17/0.20 | 41/43 | 570 |
| MF13538A2-HBAPL | 220/240 | 50/60 | 0.1* | 23/21 | 2600/3000 | 115/141 | 0.26/0.27 | 43/45 | 570 |
| MF13538A2-LBAPL | 220/240 | 50/60 | 0.06* | 10/9 | 2100/2400 | 93/107 | 0.07/0.11 | 39/41 | 570 |
| MF13538A2-MBAPL | 220/240 | 50/60 | 0.10 | 15/14 | 2400/2700 | 107/120 | 0.17/0.20 | 41/43 | 570 |
| MF13538A3-HBAPL | 380/400 | 50/60 | 0.06 | 23/21 | 2600/3000 | 115/141 | 0.26/0.27 | 43/45 | 570 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*Current is a design reference scaled from the equivalent voltage rating; production data follows the complete part-number approval sheet.

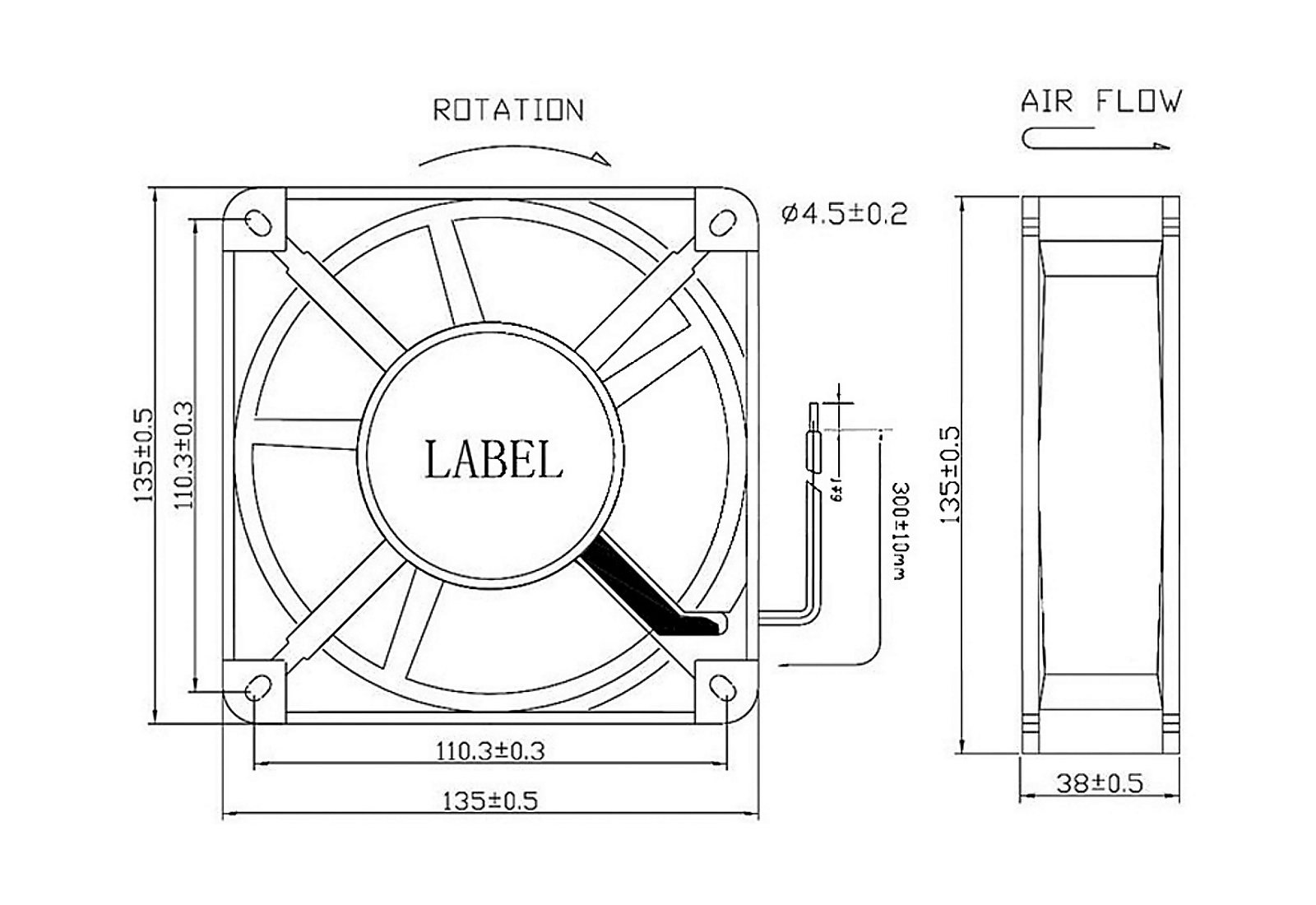

Dimension Drawing

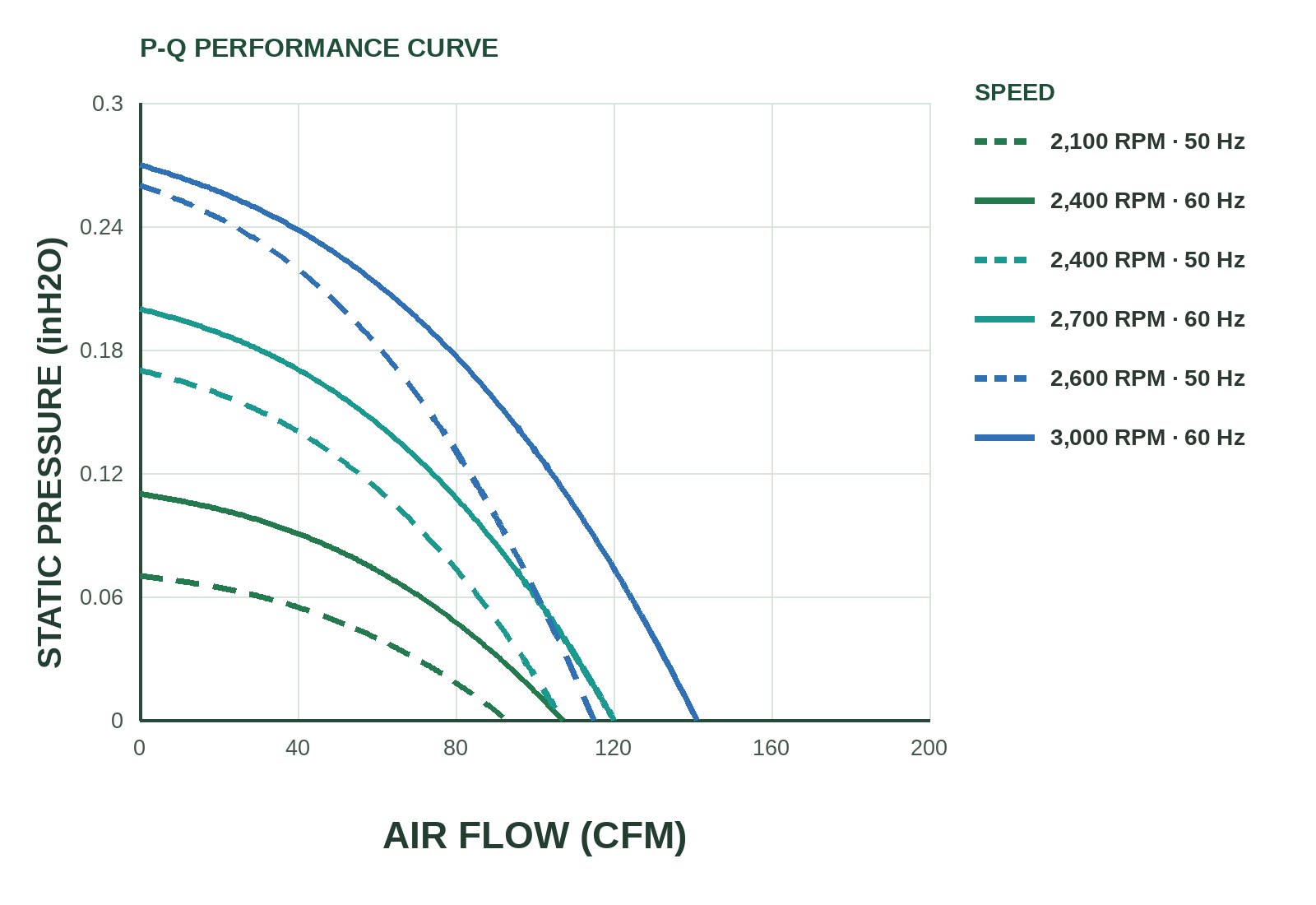

P&Q Curve
Part Number Code
MFSeries
120Frame
38Thickness
A1Voltage
HSpeed
BBearing
AFrame Material
PImpeller
TLead-out
IP55Protection
Example MF12038A1-HBAPT-IP55
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
MF
AC Axial Fan
120 / 38
120mm frame, 38mm thickness
Voltage
A1110 / 120 VAC
A2220 / 240 VAC
A3380 / 440 VAC
Speed
LLow speed
MMedium speed
HHigh speed
Bearing
BBall Bearing
SSleeve Bearing
A
Aluminum die-cast frame
P / A
PBT + 30% glass-fibre impeller / aluminum-magnesium alloy impeller
SQ
Identifies the square 172 × 172 frame, distinct from the 172 × 150 frame
T / L
Terminal connector / flying leads; the lead-out type follows the complete part number
-IP55
IP55 water-protected type (IPX7 also available)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
