Protection Series · IP44 Rated · UL 94V-0

Filter & Accessories

Complete range of ventilator filters, louvered filters, fan guards, and mounting accessories to protect and complement your cooling fan installation.

4Product Series
IP44Ingress Rated
UL94V-0 ABS
4–7"Size Options

Filter & Accessories

Complete range of ventilator filters, fan guards, and mounting accessories to complement your cooling fan installation.

IP44 Rated
Multiple Sizes
Quality Materials
Easy Installation

Ventilator Filters (MA Series)

MA-04

MA-04

4 inch (120mm Fan)

Size 148.5 × 148.5 × 13.5 mm
Material ABS 94V-0 UL
IP Rating IP44
Type Panel Filter
View Full Specs
MA-06

MA-06

6 inch (172mm Fan)

Size 204 × 204 × 13.5 mm
Material ABS 94V-0 UL
IP Rating IP44
Type Panel Filter
View Full Specs

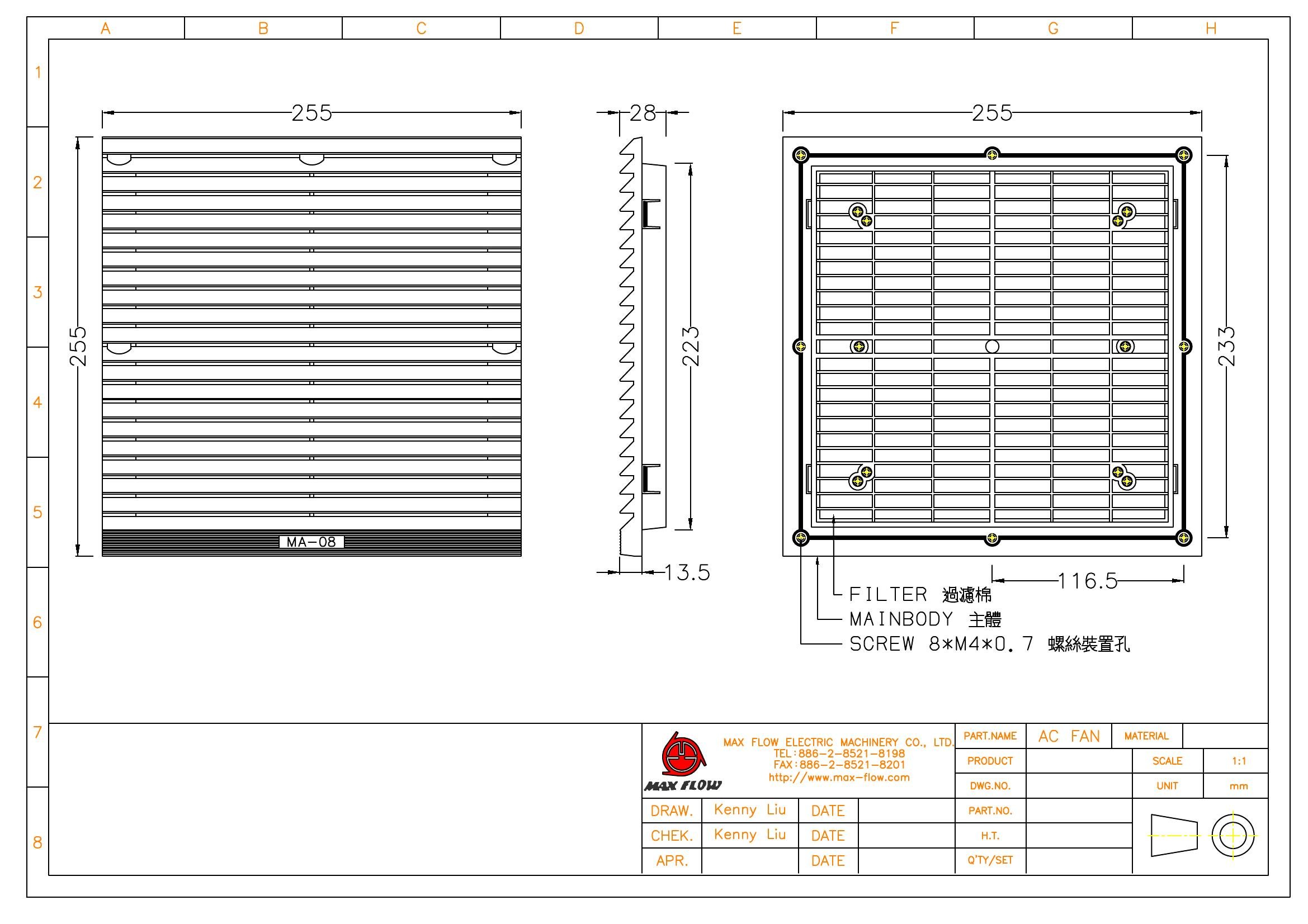

MA-08

MA-08

8 inch (205mm Fan)

Size 255 × 255 × 13.5 mm
Material ABS 94V-0 UL
IP Rating IP44
Type Panel Filter
View Full Specs
MA-10

MA-10

10 inch (250mm Fan)

Size 320 × 320 × 13 mm
Material ABS 94V-0 UL
IP Rating IP44
Type Panel Filter
View Full Specs

Louvered Ventilation Filters (MU Series)

MU-04

MU-04

4 inch (120mm Fan)

Size 158 × 158 × 30 mm
Cutout 128 × 128 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs
MU-06

MU-06

6 inch (172mm Fan)

Size 204 × 204 × 26 mm
Cutout 173 × 173 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs
MU-08

MU-08

8 inch (205mm Fan)

Size 256 × 256 × 30 mm
Cutout 222 × 222 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs
MU-10

MU-10

10 inch (250mm Fan)

Size 320 × 320 × 30 mm
Cutout 283 × 283 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs
MU-9703

MU-9703

4 inch (120mm Fan)

Size 158 × 158 × 30 mm
Cutout 128 × 128 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs
MU-9704

MU-9704

6 inch (172mm Fan)

Size 208 × 208 × 30 mm
Cutout 173 × 173 mm
Components Filter + Louver + Cushions
Mounting 8 × M4 × 0.7 Screws
View Full Specs

Fan Guards & Grills

FG-80

FG-80

80mm

Size 80 × 80 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs
FG-92

FG-92

92mm

Size 92 × 92 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs
FG-120

FG-120

120mm

Size 120 × 120 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs
FG-172

FG-172

172mm

Size 172 × 172 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs
FG-205

FG-205

205mm

Size 205 × 205 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs
FG-250

FG-250

250mm

Size 250 × 250 mm
Material Steel Wire
Finish Chrome Plated
Type Finger Guard
View Full Specs

Fan Filters & Screws

FF-120

FF-120

120mm

Size 120 × 120 mm
Material Plastic Frame + Foam
Type Dust Filter
Mounting Snap-in
View Full Specs
FS-120

FS-120

120mm

Size For 120mm Fans
Material Steel
Type Mounting Screws
Package 4 pcs / set
View Full Specs
